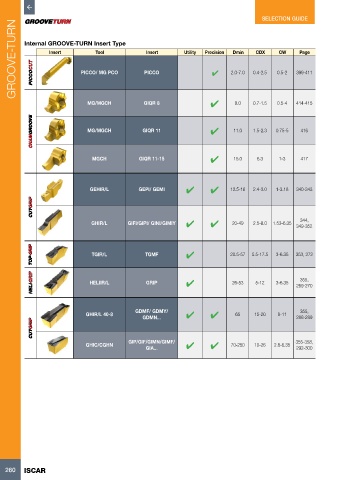

SELECTION GUIDE
GROOVE-TURN Internal GROOVE-TURN Insert Type PICCO Utility Precision 2.0-7.0 0.4-2.5 0.5-2 399-411
Dmin
Insert
Tool
CW
Page
CDX
Insert
PICCO/ MG PCO
4
MG/MGCH GIQR 8 4 8.0 0.7-1.5 0.5-4 414-415
MG/MGCH GIQR 11 4 11.0 1.5-2.3 0.75-5 416
MGCH GIQR 11-15 4 15.0 6.3 1-3 417
GEHIR/L GEPI/ GEMI 4 4 12.5-16 2.4-3.0 1-3.18 340-343
344,
GHIR/L GIFI/GIPI/ GINI/GIMIY 4 4 20-49 2.5-8.0 1.53-6.35 349-352
TGIR/L TGMF 4 20.5-57 5.5-17.5 3-6.35 353, 272
355,
HELIIR/L GRIP 4 26-53 5-12 3-6.35 269-270
GDMF/ GDMY/ 355,
GHIR/L 40-8 4 4 65 15-20 8-11
GDMN... 288-289
GIP/GIF/GIMN/GIMF/ 355-358,
GHIC/CGHN 4 4 70-250 10-26 2.8-6.35
GIA... 292-300
