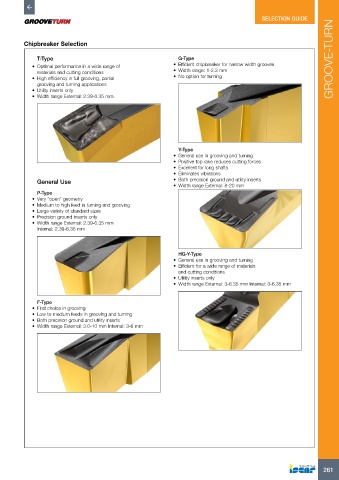

Page 263 - ISCAR(TURNING-CATALOG-42-2022)

SELECTION GUIDE

Chipbreaker Selection

T-Type G-Type GROOVE-TURN
• Optimal performance in a wide range of • Efficient chipbreaker for narrow width grooves
materials and cutting conditions • Width range: 1-2.3 mm
• High efficiency in full grooving, partial • No option for turning
grooving and turning applications
• Utility inserts only
• Width range External: 2.39-6.35 mm

Y-Type
• General use in grooving and turning
• Positive top rake reduces cutting forces
• Excellent for long shafts
• Eliminates vibrations
General Use • Both precision ground and utility inserts
• Width range External: 8-20 mm
P-Type
• Very “open” geometry
• Medium to high feed in turning and grooving
• Large variety of standard sizes
• Precision ground inserts only
• Width range External: 2.39-6.35 mm
Internal: 2.39-6.35 mm

HG-Y-Type
• General use in grooving and turning
• Efficient for a wide range of materials
and cutting conditions
• Utility inserts only
• Width range External: 3-6.35 mm Internal: 3-6.35 mm

F-Type
• First choice in grooving
• Low to medium feeds in grooving and turning
• Both precision ground and utility inserts
• Width range External: 3.0-10 mm Internal: 3-6 mm
