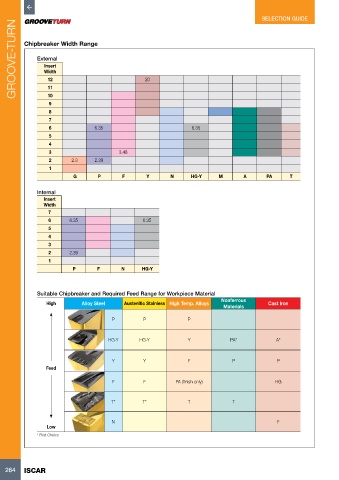

SELECTION GUIDE
GROOVE-TURN Chipbreaker Width Range 20

External
Insert
Width
12
11
10
9
8
7
6 6.35 6.35
5
4
3 3.48
2 2.3 2.39
1
G P F Y N HG-Y M A PA T

Internal
Insert
Width
7
6 6.35 6.35
5
4
3
2 2.39
1
P F N HG-Y

Suitable Chipbreaker and Required Feed Range for Workpiece Material
Nonferrous
High Alloy Steel Austenitic Stainless High Temp. Alloys Cast Iron
Materials
P P P

HG-Y HG-Y Y PA* A*

Y Y F P P
Feed

F F PA (finish only) HG

T* T* T T

N F
Low
* First Choice
