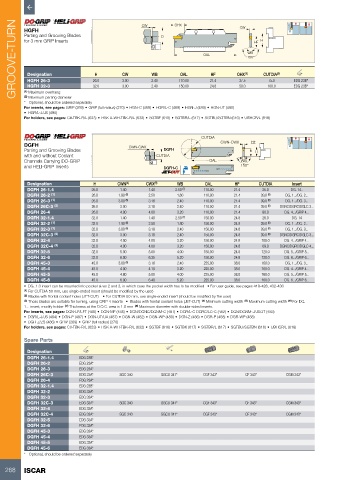

Page 270 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN HGFH 26.0 CW CW WB D OHX OAL OAL 21.4 OHX (1) 150° HF H CUTDIA (2) EDG 23B*
CW
Parting and Grooving Blades
for 3 mm GRIP Inserts

WB

Designation
H
HF
HGFH 26-3
37.5
3.00
75.0
2.40
110.00

HGFH 32-3
(1) Maximum overhang
(2) Maximum parting diameter
* Optional, should be ordered separately 32.0 3.00 2.40 150.00 24.8 50.0 100.0 EDG 23B*
For inserts, see pages: GRIP (269) • GRIP (full radius) (270) • HGN-C (489) • HGR/L-C (489) • HGN-J (489) • HGN-UT (490)
• HGR/L-J/JS (490)
For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBR/L (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

CUTDIA
DGFH CWN-CWX CWN-CWX HF
Parting and Grooving Blades DGFH H
with and without Coolant CUTDIA
Channels Carrying DO-GRIP OAL WB
and HELI-GRIP Inserts DGFH-C 150°
Designation H CWN (4) CWX (5) WB OAL HF CUTDIA Insert
DGFH 26-1.4 26.0 1.40 1.40 2.50 (7) 110.00 21.4 26.0 DG. 14..
DGFH 26-2 (1) 26.0 1.90 (6) 2.50 1.60 110.00 21.4 39.0 (8) DG. 1.../DG. 2...
DGFH 26-3 (1) 26.0 3.00 3.18 2.40 110.00 21.4 39.0 DG. 1.../DG. 3...
(8)
(6)
DGFH 26C-3 (2) 26.0 3.00 3.18 2.40 110.00 21.4 39.0 DGNC/DGRC/DGLC 3...
(8)
DGFH 26-4 26.0 4.00 4.00 3.20 110.00 21.4 80.0 DG. 4.../GRIP 4...
DGFH 32-1.4 32.0 1.40 1.40 2.50 150.00 24.8 26.0 DG. 14
(7)
(6)
DGFH 32-2 (1) 32.0 1.90 2.50 1.80 150.00 24.8 39.0 DG. 1.../DG. 2...
(8)
(8)
DGFH 32-3 (1) 32.0 3.00 3.18 2.40 150.00 24.8 39.0 DG. 1.../DG. 3...
(6)
DGFH 32C-3 (2) 32.0 3.00 3.18 2.40 150.00 24.8 39.0 DGNC/DGRC/DGLC 3...
(8)
DGFH 32-4 32.0 4.00 4.00 3.20 150.00 24.8 100.0 DG. 4.../GRIP 4...
DGFH 32C-4 (3) 32.0 4.00 4.00 3.20 150.00 24.8 69.0 DGNC/DGRC/DGLC 4...
DGFH 32-5 32.0 5.00 5.00 4.00 150.00 24.8 120.0 DG. 5.../GRIP 5...
DGFH 32-6 32.0 6.00 6.35 5.20 150.00 24.8 120.0 DG. 6.../GRIP 6...
DGFH 45-3 45.0 3.00 3.18 2.40 225.00 38.0 160.0 DG. 1.../DG. 3...
(6)
DGFH 45-4 45.0 4.00 4.10 3.20 225.00 38.0 160.0 DG. 4.../GRIP 4...
DGFH 45-5 45.0 4.80 5.00 4.00 225.00 38.0 160.0 DG. 5.../GRIP 5...
DGFH 45-6 45.0 6.00 6.40 5.20 225.00 38.0 160.0 DG. 6.../GRIP 6...
• DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified • For user guide, see pages 419-428, 432-436
(1) For CUTDIA 50 mm, use single-ended insert (should be modified by the user)
(2) Blades with frontal coolant holes (JET-CUT) • For CUTDIA 50 mm, use single-ended insert (should be modified by the user)
(3) These blades are suitable for turning, using GRIP 4 inserts • Blades with frontal coolant holes (JET-CUT) (4) Minimum cutting width (5) Maximum cutting width (6) For DG.
1... insert, modify holder (7) Thickness at the D.O.C. area is 1.0 mm (8) Maximum diameter with double-sided inserts.
For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN/DGNC/DGNM-C (481) • DGR/L-C DGRC/LC-C (482) • DGN/DGNM-J/JS/JT (483)
• DGR/L-J/JS (484) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486) • DGR-P (488) • DGR-WP (488)
• DGR-Z/ZS (486) • GRIP (269) • GRIP (full radius) (270)
For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBK (617) • SGTBR/L (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

Spare Parts
Designation
DGFH 26-1.4 EDG 23B*
DGFH 26-2 EDG 23A*
DGFH 26-3 EDG 23A*
DGFH 26C-3 EDG 23A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343*
DGFH 26-4 EDG 23A*
DGFH 32-1.4 EDG 23B*
DGFH 32-2 EDG 33A*
DGFH 32-3 EDG 33A*
DGFH 32C-3 EDG 33A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343*
DGFH 32-4 EDG 33A*
DGFH 32C-4 EDG 33A* SGC 340 SGCU 341* CGF 343* CF 343* CGM 343*
DGFH 32-5 EDG 33A*
DGFH 32-6 EDG 33A*
DGFH 45-3 EDG 33A*
DGFH 45-4 EDG 33A*
DGFH 45-5 EDG 33A*
DGFH 45-6 EDG 33A*
* Optional, should be ordered separately

268 ISCAR
