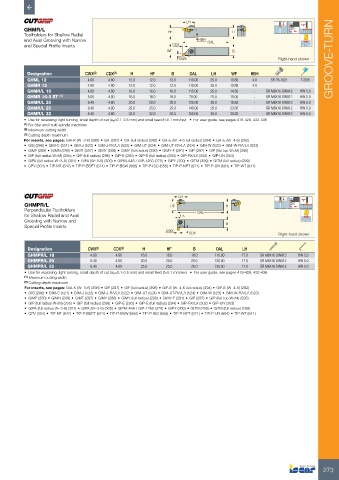

LH

GHMR/L HF H
Toolholders for Shallow Radial
and Axial Grooving with Narrow HBH OAL
and Special Profile Inserts CDX
WF B
CWX Right-hand shown GROOVE-TURN

Designation CWX (2) CDX (3) H HF B OAL LH WF HBH
GHML 12 4.00 4.80 12.0 12.0 12.0 110.00 25.0 10.80 4.0 SR 76-1021 T-20/5
GHMR 12 4.80 4.80 12.0 12.0 12.0 110.00 25.0 10.80 4.0
GHMR/L 16 4.80 4.80 16.0 16.0 16.0 115.00 25.0 14.50 - SR M6X16 DIN912 HW 5.0
GHMR 16-3 ST (1) 5.00 4.80 16.0 16.0 16.0 78.00 25.0 15.00 - SR M6X16 DIN912 HW 5.0
GHMR/L 20 6.40 4.80 20.0 20.0 20.0 125.00 25.0 18.50 - SR M6X16 DIN912 HW 5.0
GHMR/L 25 6.40 4.80 25.0 25.0 25.0 140.00 25.0 23.50 - SR M6X16 DIN912 HW 5.0
GHMR/L 32 6.40 4.80 32.0 32.0 32.0 150.00 25.0 30.20 - SR M6X16 DIN912 HW 5.0
• Use for recessing: light turning, small depth of cut (ap=0.1-0.5 mm) and small feed (f=0.1 mm/rev) • For user guide, see pages 419-428, 432-436
(1) For Star and multi-spindle machines
(2) Maximum cutting width
(3) Cutting depth maximum
For inserts, see pages: GIA-K (W=3-6) (298) • GIF (297) • GIF (full radius) (298) • GIF-E (W=4-6 full radius) (294) • GIF-E (W=4-6) (292)
• GIG (296) • GIM-C (521) • GIM-J (522) • GIM-J-RA/LA (522) • GIM-UT (524) • GIM-UT-RA/LA (524) • GIM-W (523) • GIM-W-RA/LA (523)
• GIMF (288) • GIMN (289) • GIMT (287) • GIMY (288) • GIMY (full radius) (290) • GIMY-F (291) • GIP (297) • GIP (flat top W<M) (295)
• GIP (full radius W<M) (295) • GIP (full radius) (296) • GIP-E (293) • GIP-E (full radius) (294) • GIP-RX/LX (302) • GIP-UN (303)
• GIPA (full radius W=3-6) (301) • GIPA (W=3-6) (300) • GIPM-A46 / GIP-1250 (375) • GIPY (300) • GITM (299) • GITM (full radius) (299)
• GPV (304) • TIP-MT (647) • TIP-P-BSPT (674) • TIP-P-BSW (668) • TIP-P-ISO (658) • TIP-P-NPT (671) • TIP-P-UN (664) • TIP-WT (641)

LH
GHMPR/L HF H
Perpendicular Toolholders OAL
for Shallow Radial and Axial 1.5
Grooving with Narrow and B
Special Profile Inserts
CWX
CDX Right-hand shown

Designation CWX (1) CDX (2) H HF B OAL LH
GHMPR/L 16 4.80 4.80 16.0 16.0 16.0 110.00 17.0 SR M6X16 DIN912 HW 5.0
GHMPR/L 20 6.40 4.80 20.0 20.0 20.0 120.00 17.0 SR M6X16 DIN912 HW 5.0
GHMPR/L 25 6.40 4.80 25.0 25.0 25.0 135.00 17.0 SR M6X16 DIN912 HW 5.0
• Use for recessing: light turning, small depth of cut (ap=0.1-0.5 mm) and small feed (f=0.1 mm/rev) • For user guide, see pages 419-428, 432-436
(1) Maximum cutting width
(2) Cutting depth maximum
For inserts, see pages: GIA-K (W=3-6) (298) • GIF (297) • GIF (full radius) (298) • GIF-E (W=4-6 full radius) (294) • GIF-E (W=4-6) (292)
• GIG (296) • GIM-C (521) • GIM-J (522) • GIM-J-RA/LA (522) • GIM-UT (524) • GIM-UT-RA/LA (524) • GIM-W (523) • GIM-W-RA/LA (523)
• GIMF (288) • GIMN (289) • GIMT (287) • GIMY (288) • GIMY (full radius) (290) • GIMY-F (291) • GIP (297) • GIP (flat top W<M) (295)
• GIP (full radius W<M) (295) • GIP (full radius) (296) • GIP-E (293) • GIP-E (full radius) (294) • GIP-RX/LX (302) • GIP-UN (303)
• GIPA (full radius W=3-6) (301) • GIPA (W=3-6) (300) • GIPM-A46 / GIP-1250 (375) • GIPY (300) • GITM (299) • GITM (full radius) (299)
• GPV (304) • TIP-MT (647) • TIP-P-BSPT (674) • TIP-P-BSW (668) • TIP-P-ISO (658) • TIP-P-NPT (671) • TIP-P-UN (664) • TIP-WT (641)
