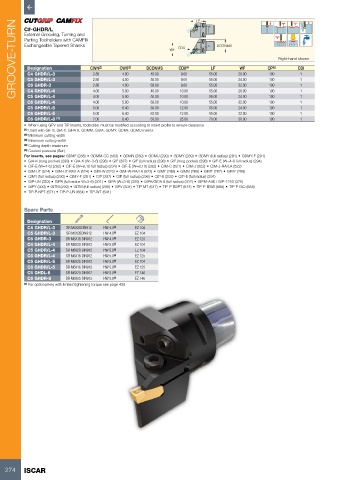

Page 276 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN C#-GHDR/L CWN (2) CWX (3) DCONMS WF CDX (4) LF 55.00 DCONMS 20.00 CP (5) Right-hand shown

External Grooving, Turning and
Parting Toolholders with CAMFIX
Exchangeable Tapered Shanks

WF
Designation
CDI
LF
CDX
2.80
C4 GHDR/L-3
9.00
1
4.00
40.00
100
9.00
C5 GHDR/L-3
100
1
24.00
4.00
2.80
55.00
50.00
9.00
C6 GHDR-3
C4 GHDR/L-4
40.00
100
4.00
5.00
55.00
20.00
C5 GHDR/L-4
10.00
55.00
100
4.00
24.00
50.00
5.00
C6 GHDR/L-4 2.80 4.00 63.00 10.00 55.00 32.00 100 1 1 1 1
32.00
4.00
5.00
63.00
10.00
55.00
100
C5 GHDR/L-5 5.00 6.40 50.00 12.00 55.00 24.00 100 1
C6 GHDR/L-5 5.00 6.40 63.00 12.00 55.00 32.00 100 1
C6 GHDR/L-8 (1) 7.00 8.40 63.00 25.00 70.00 30.00 100 1
• When using GPV and TIP inserts, toolholder must be modified according to insert profile to ensure clearance
(1) Used with GIF 8, GIA 8, GIPA 8, GDMM, GIDA, GDMY, GDMF, GDMU inserts
(2) Minimum cutting width
(3) Maximum cutting width
(4) Cutting depth maximum
(5) Coolant pressure (Bar)
For inserts, see pages: GDMF (288) • GDMM-CC (583) • GDMN (289) • GDMU (290) • GDMY (289) • GDMY (full radius) (291) • GDMY-F (291)
• GIA-K (long pocket) (299) • GIA-K (W=3-6) (298) • GIF (297) • GIF (full radius) (298) • GIF (long pocket) (298) • GIF-E (W=4-6 full radius) (294)
• GIF-E (W=4-6) (292) • GIF-E (W=8,10 full radius) (294) • GIF-E (W=8,10) (292) • GIM-C (521) • GIM-J (522) • GIM-J-RA/LA (522)
• GIM-UT (524) • GIM-UT-RA/LA (524) • GIM-W (523) • GIM-W-RA/LA (523) • GIMF (288) • GIMN (289) • GIMT (287) • GIMY (288)
• GIMY (full radius) (290) • GIMY-F (291) • GIP (297) • GIP (full radius) (296) • GIP-E (293) • GIP-E (full radius) (294)
• GIP-UN (303) • GIPA (full radius W=3-6) (301) • GIPA (W=3-6) (300) • GIPA/GIDA 8 (full radius) (302) • GIPM-A46 / GIP-1250 (375)
• GIPY (300) • GITM (299) • GITM (full radius) (299) • GPV (304) • TIP-MT (647) • TIP-P-BSPT (674) • TIP-P-BSW (668) • TIP-P-ISO (658)
• TIP-P-NPT (671) • TIP-P-UN (664) • TIP-WT (641)

Spare Parts
Designation
C4 GHDR/L-3 SR M5X20DIN912 HW 4.0 (a) EZ 104
C5 GHDR/L-3 SR M5X20DIN912 HW 4.0 (a) EZ 104
C6 GHDR-3 SR M5X16 DIN912 HW 4.0 (a) EZ 125
C4 GHDR/L-4 SR M6X20 DIN912 HW 5.0 (a) EZ 104
C5 GHDR/L-4 SR M6X20 DIN912 HW 5.0 (a) EZ 104
C6 GHDR/L-4 SR M6X16 DIN912 HW 5.0 (a) EZ 125
C5 GHDR/L-5 SR M6X25 DIN912 HW 5.0 (a) EZ 104
C6 GHDR/L-5 SR M6X16 DIN912 HW 5.0 (a) EZ 125
C6 GHDL-8 SR M6X20 DIN912 HW 5.0 (a) EZ 146
C6 GHDR-8 SR M6X25 DIN912 HW 5.0 (a) EZ 146
(a) For optional key with limited tightening torque see page 428
