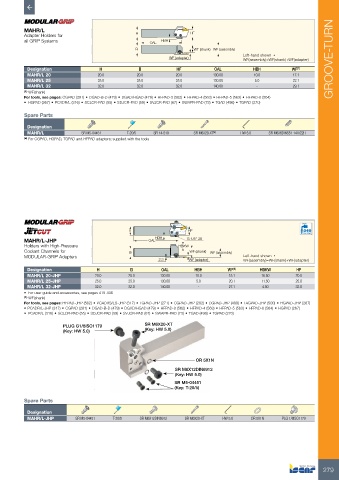

Page 281 - ISCAR(TURNING-CATALOG-42-2022)

MAHR/L
H HF
Adapter Holders for
all GRIP Systems OAL HBH
B WF (shank) WF (assembly)
WF (adapter) Left-hand shown •
WF(assembly)=WF(shank)+WF(adapter) GROOVE-TURN
Designation H B HF OAL HBH WF (1)
MAHR/L 20 20.0 20.0 20.0 130.00 10.0 17.1
MAHR/L 25 25.0 25.0 25.0 130.00 5.0 22.1
MAHR/L 32 32.0 32.0 32.0 140.00 - 29.1
(1) WF(shank)
For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)
• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts

Designation
MAHR/L SR M5-04451 T-20/5 SR 14-519 SR M6X20-XT (a) HW 5.0 SR M6X6DIN551 14H/22H
(a) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools

H HF Bar Max
MAHR/L-JHP OAL HBH G 1/8"-28
Holders with High-Pressure HBKW
Coolant Channels for B WF (shank) WF (assembly)
MODULAR-GRIP Adapters Left-hand shown •
2.3 WF (adapter) WF(assembly)=WF(shank)+WF(adapter)
Designation H B OAL HBH WF (1) HBKW HF
MAHR/L 20-JHP 20.0 20.0 130.00 10.0 15.1 16.50 20.0
MAHR/L 25-JHP 25.0 25.0 130.00 5.0 20.1 11.50 25.0
MAHR/L 32-JHP 32.0 32.0 140.00 - 27.1 4.50 32.0
• For user guide and accessories, see pages 419-436
(1) WF(shank)
For tools, see pages: HFPAD-JHP (562) • PCADRS/LS-JHP (317) • TGPAD-JHP (271) • CGPAD-JHP (282) • DGPAD-JHP (480) • TAGPAD-JHP (500) • HGPAD-JHP (267)
• PCADR/L-JHP (317) • CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HGPAD (267)
• PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

PLUG G1/8ISO1179 SR M6X20-XT
(Key: HW 5.0) (Key: HW 5.0)

OR 5X1N
SR M6X12DIN6912
(Key: HW 5.0)
SR M5-04451
(Key: T-20/5)

Spare Parts

Designation
MAHR/L-JHP SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N PLG 1/8ISO1179
