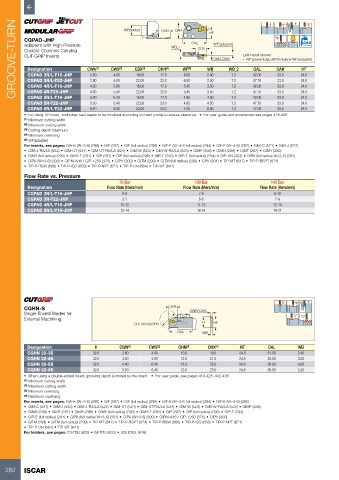

Page 284 - ISCAR(TURNING-CATALOG-42-2022)

GROOVE-TURN CGPAD-JHP CWN (1) CWX (2) WF(holder) (3) OHN (4) WB_2 WF (5) OAL CDX WB CWN-CWX WB_2 Left-hand shown OAH 24.0
OAH
OHN
HF
WF (adapter)
Adapters with High-Pressure
Bar Max
Coolant Channels Carrying
CUT-GRIP Inserts
WB
• WF(assembly)=WF(holder)+WF(adapter)
Designation
CDX
OAL
HF
16.00
7.2
17.3
4.00
CGPAD 3R/L-T16-JHP
2.80
2.40
6.00
42.00
33.0
CGPAD 3R/L-T22-JHP
33.0
6.00
22.00
24.0
2.80
23.0
4.00
47.70
2.40
7.2
CGPAD 4R/L-T16-JHP
CGPAD 4R-T22-JHP
5.00
5.45
7.2
24.0
33.0
22.00
47.70
3.50
4.00
23.0
5.00
7.2
24.0
6.40
16.00
33.0
CGPAD 5R/L-T16-JHP
4.95
4.50
42.00
17.3
24.0
47.70
4.95
33.0
7.2
23.0
4.50
22.00
5.00
CGPAD 5R-T22-JHP 4.00 5.00 16.00 17.3 5.45 3.50 7.2 42.00 33.0 24.0
6.40
CGPAD 8R/L-T22-JHP 6.40 8.00 22.00 23.0 4.20 6.00 7.2 47.00 33.0 24.0
• For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance • For user guide and accessories see pages 419-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
(4) Minimum overhang
(5) WF(adapter)
For inserts, see pages: GIA-K (W=3-6) (298) • GIF (297) • GIF (full radius) (298) • GIF-E (W=4-6 full radius) (294) • GIF-E (W=4-6) (292) • GIM-C (521) • GIM-J (522)
• GIM-J-RA/LA (522) • GIM-UT (524) • GIM-UT-RA/LA (524) • GIM-W (523) • GIM-W-RA/LA (523) • GIMF (288) • GIMN (289) • GIMT (287) • GIMY (288)
• GIMY (full radius) (290) • GIMY-F (291) • GIP (297) • GIP (full radius) (296) • GIP-E (293) • GIP-E (full radius) (294) • GIP-UN (303) • GIPA (full radius W=3-6) (301)
• GIPA (W=3-6) (300) • GIPM-A46 / GIP-1250 (375) • GIPY (300) • GITM (299) • GITM (full radius) (299) • GPV (304) • TIP-MT (647) • TIP-P-BSPT (674)
• TIP-P-BSW (668) • TIP-P-ISO (658) • TIP-P-NPT (671) • TIP-P-UN (664) • TIP-WT (641)
Flow Rate vs. Pressure
70 Bar 100 Bar 140 Bar
Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)
CGPAD 3R/L-T16-JHP 6-8 7-9 8-10
CGPAD 3R-T22-JHP 5-7 6-8 7-9
CGPAD 4R/L-T16-JHP 10-12 11-13 12-14
CGPAD 5R/L-T16-JHP 12-14 16-18 19-21

CGHN-S OHX CWN-CWX
Single-Ended Blades for
External Machining
CUTDIA=2xOHX H HF
OAL WB
Designation H CWN (1) CWX (2) OHN (3) OHX (4) HF OAL WB
CGHN 32-3S 32.0 2.80 4.00 10.0 19.0 24.8 51.00 2.40
CGHN 32-4S 32.0 3.50 5.00 12.0 21.0 24.8 53.00 3.20
CGHN 32-5S 32.0 4.40 6.40 12.0 25.0 24.8 56.00 4.00
CGHN 32-6S 32.0 5.50 6.40 12.0 25.0 24.8 56.00 5.20
• When using a double-ended insert, grooving depth is limited by the insert • For user guide, see pages 419-428, 432-436
(1) Minimum cutting width
(2) Maximum cutting width
(3) Minimum overhang
(4) Maximum overhang
For inserts, see pages: GIA-K (W=3-6) (298) • GIF (297) • GIF (full radius) (298) • GIF-E (W=4-6 full radius) (294) • GIF-E (W=4-6) (292)
• GIM-C (521) • GIM-J (522) • GIM-J-RA/LA (522) • GIM-UT (524) • GIM-UT-RA/LA (524) • GIM-W (523) • GIM-W-RA/LA (523) • GIMF (288)
• GIMN (289) • GIMT (287) • GIMY (288) • GIMY (full radius) (290) • GIMY-F (291) • GIP (297) • GIP (full radius) (296) • GIP-E (293)
• GIP-E (full radius) (294) • GIPA (full radius W=3-6) (301) • GIPA (W=3-6) (300) • GIPM-A46 / GIP-1250 (375) • GIPY (300)
• GITM (299) • GITM (full radius) (299) • TIP-MT (647) • TIP-P-BSPT (674) • TIP-P-BSW (668) • TIP-P-ISO (658) • TIP-P-NPT (671)
• TIP-P-UN (664) • TIP-WT (641)
For holders, see pages: C#-TBU (623) • IM-TBU (633) • UBHCR/L (618)

282 ISCAR
