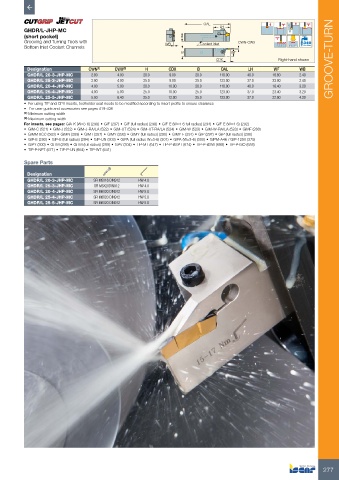

Page 279 - ISCAR(TURNING-CATALOG-42-2022)

OAL
GHDR/L-JHP-MC LH
(short pocket) H
Grooving and Turning Tools with WB Coolant inlet CWN-CWX
Bottom Inlet Coolant Channels Bar Max
B WF
CDX Right-hand shown GROOVE-TURN
Designation CWN (1) CWX (2) H CDX B OAL LH WF WB
GHDR/L 20-3-JHP-MC 2.80 4.00 20.0 9.00 20.0 110.00 40.0 18.80 2.40
GHDR/L 25-3-JHP-MC 2.80 4.00 25.0 9.00 25.0 123.00 37.0 23.80 2.40
GHDR/L 20-4-JHP-MC 4.00 5.00 20.0 10.00 20.0 110.00 40.0 18.40 3.20
GHDR/L 25-4-JHP-MC 4.00 5.00 25.0 10.00 25.0 123.00 37.0 23.40 3.20
GHDR/L 25-5-JHP-MC 5.00 6.40 25.0 12.00 25.0 123.00 37.0 22.90 4.20
• For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance
• For user guide and accessories see pages 419-436
(1) Minimum cutting width
(2) Maximum cutting width
For inserts, see pages: GIA-K (W=3-6) (298) • GIF (297) • GIF (full radius) (298) • GIF-E (W=4-6 full radius) (294) • GIF-E (W=4-6) (292)
• GIM-C (521) • GIM-J (522) • GIM-J-RA/LA (522) • GIM-UT (524) • GIM-UT-RA/LA (524) • GIM-W (523) • GIM-W-RA/LA (523) • GIMF (288)
• GIMM 8CC (583) • GIMN (289) • GIMT (287) • GIMY (288) • GIMY (full radius) (290) • GIMY-F (291) • GIP (297) • GIP (full radius) (296)
• GIP-E (293) • GIP-E (full radius) (294) • GIP-UN (303) • GIPA (full radius W=3-6) (301) • GIPA (W=3-6) (300) • GIPM-A46 / GIP-1250 (375)
• GIPY (300) • GITM (299) • GITM (full radius) (299) • GPV (304) • TIP-MT (647) • TIP-P-BSPT (674) • TIP-P-BSW (668) • TIP-P-ISO (658)
• TIP-P-NPT (671) • TIP-P-UN (664) • TIP-WT (641)

Spare Parts

Designation
GHDR/L 20-3-JHP-MC SR M5X16 DIN912 HW 4.0
GHDR/L 25-3-JHP-MC SR M5X20DIN912 HW 4.0
GHDR/L 20-4-JHP-MC SR M6X20 DIN912 HW 5.0
GHDR/L 25-4-JHP-MC SR M6X20 DIN912 HW 5.0
GHDR/L 25-5-JHP-MC SR M6X20 DIN912 HW 5.0
