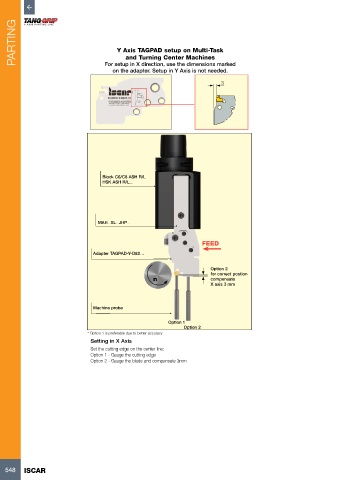

PARTING                             Y Axis TAGPAD setup on Multi-Task






                                             and Turning Center Machines
                                      For setup in X direction, use the dimensions marked
                                         on the adapter. Setup in Y Axis is not needed.

                                                                               3


















                                     Block C6/C8 ASH R/L
                                     HSK ASH R/L…







                                   MAH…XL…JHP…


                                                                        FEED

                                  Adapter TAGPAD-Y-D82….

                                                                           Option 2
                                                                           for correct postion
                                                       n                   compensate
                                                                           X axis 3 mm



                                  Machine probe

                                                            Option 1
                                                                  Option 2
                                * Option 1 is preferable due to better accuracy
                                 Setting in X Axis
                                 Set the cutting edge on the center line:
                                 Option 1 - Gauge the cutting edge
                                 Option 2 - Gauge the blade and compensate 3mm
