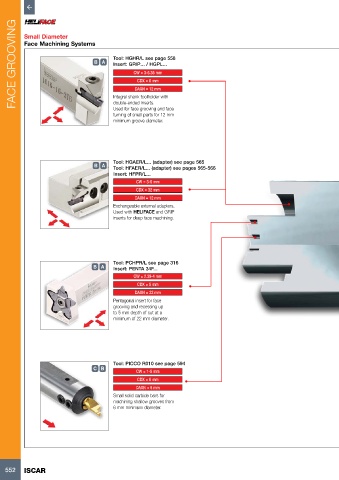

Page 554 - ISCAR(TURNING-CATALOG-42-2022)

FACE GROOVING Small Diameter B A Tool: HGHR/L see page 558

Face Machining Systems

Insert: GRIP… / HGPL…
CW = 3-6.35 mm
CDX = 6 mm
DAXN = 12 mm
Integral shank toolholder with
double-ended inserts.
Used for face grooving and face
turning of small parts for 12 mm
minimum groove diameter.

Tool: HGAER/L… (adapter) see page 565
B A Tool: HFAER/L… (adapter) see pages 565-566
Insert: HFPR/L…
CW = 3-6 mm
CDX = 32 mm
DAXN = 12 mm
Exchangeable external adapters.
Used with HELIFACE and GRIP
inserts for deep face machining.

Tool: PCHPR/L see page 316
B A Insert: PENTA 34F...
CW = 2.39-4 mm
CDX = 5 mm
DAXN = 22 mm
Pentagonal insert for face
grooving and recessing up
to 5 mm depth of cut at a
minimum of 22 mm diameter.

Tool: PICCO R010 see page 594
C B
CW = 1-5 mm
CDX = 6 mm
DAXN = 6 mm
Small solid carbide bars for
machining shallow grooves from
6 mm minimum diameter.
