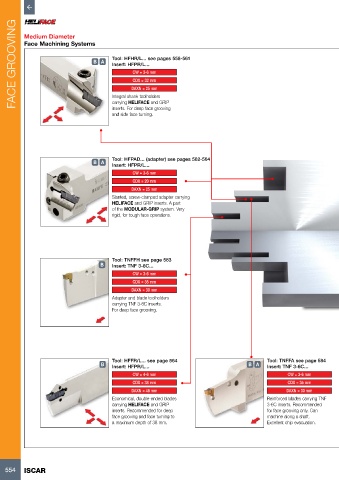

FACE GROOVING Medium Diameter B A Tool: HFHR/L… see pages 558-561

Face Machining Systems

Insert: HFPR/L…
CW = 3-6 mm
CDX = 32 mm
DAXN = 25 mm
Integral shank toolholders
carrying HELIFACE and GRIP
inserts. For deep face grooving
and side face turning.

Tool: HFPAD… (adapter) see pages 562-564
B A Insert: HFPR/L…
CW = 3-6 mm
CDX = 20 mm
DAXN = 25 mm
Slanted, screw-clamped adapter carrying
HELIFACE and GRIP inserts. A part
of the MODULAR-GRIP system. Very
rigid, for tough face operations.

Tool: TNFFH see page 583
B Insert: TNF 3-6C…
CW = 3-6 mm
CDX = 35 mm
DAXN = 30 mm
Adapter and blade toolholders
carrying TNF 3-6C inserts.
For deep face grooving.

Tool: HFFR/L… see page 564 Tool: TNFFA see page 584
B Insert: HFPR/L… B A Insert: TNF 3-6C…

CW = 4-6 mm CW = 3-6 mm
CDX = 38 mm CDX = 35 mm
DAXN = 48 mm DAXN = 30 mm
Economical, double-ended blades Reinforced blades carrying TNF
carrying HELIFACE and GRIP 3-6C inserts. Recommended
inserts. Recommended for deep for face grooving only. Can
face grooving and face turning to machine along a shaft.
a maximum depth of 38 mm. Excellent chip evacuation.
