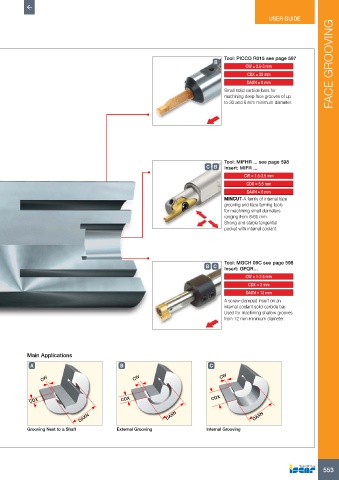

USER GUIDE
FACE GROOVING

Tool: PICCO R015 see page 597
B
CW = 2.5-3 mm
CDX = 30 mm
DAXN = 8 mm
Small solid carbide bars for
machining deep face grooves of up
to 30 and 8 mm minimum diameter.

Tool: MIFHR ... see page 598
C B Insert: MIFR …
CW = 1.5-3.5 mm
CDX = 5.5 mm
DAXN = 8 mm
MINCUT-A family of internal face
grooving and face turning tools
for machining small diameters
ranging from 8-60 mm.
Strong and stable tangential
pocket with internal coolant.

Tool: MGCH 09C see page 598
B C Insert: GFQR…
CW = 1-2.5 mm
CDX = 3 mm
DAXN = 12 mm
A screw-clamped insert on an
internal coolant solid carbide bar.
Used for machining shallow grooves
from 12 mm minimum diameter.

Main Applications
A B C

CW CW CW

CDX CDX CDX

DAXN DAXN DAXN

Grooving Next to a Shaft External Grooving Internal Grooving
