P. 557

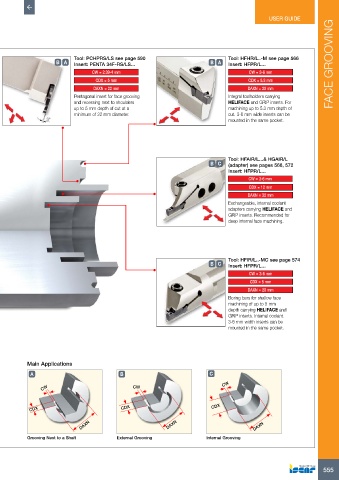

USER GUIDE
                                                                                                                      FACE GROOVING






                           Tool: PCHPRS/LS see page 590                          Tool: HFHR/L..-M see page 566
                     B  A                                                  B  A
                           Insert: PENTA 34F-RS/LS…
                                                                                 Insert: HFPR/L…
                                 CW = 2.39-4 mm                                         CW = 3-6 mm
                                   CDX = 5 mm                                           CDX = 5.3 mm
                                  DAXN = 22 mm                                          DAXN = 20 mm
                           Pentagonal insert for face grooving                   Integral toolholders carrying
                           and recessing next to shoulders                       HELIFACE and GRIP inserts. For
                           up to 5 mm depth of cut at a                          machining up to 5.3 mm depth of
                           minimum of 22 mm diameter.                            cut. 3-6 mm wide inserts can be
                                                                                 mounted in the same pocket.






                                                                                 Tool: HFAIR/L…& HGAIR/L
                                                                           B  C  (adapter) see pages 568, 572
                                                                                 Insert: HFPR/L…
                                                                                        CW = 3-6 mm
                                                                                        CDX = 12 mm
                                                                                        DAXN = 32 mm
                                                                                 Exchangeable, internal coolant
                                                                                 adapters carrying HELIFACE and
                                                                                 GRIP inserts. Recommended for
                                                                                 deep internal face machining.






                                                                                 Tool: HFIR/L..-MC see page 574
                                                                           B  C   Insert: HFPR/L…
                                                                                        CW = 3-6 mm
                                                                                         CDX = 5 mm
                                                                                        DAXN = 20 mm
                                                                                 Boring bars for shallow face
                                                                                 machining of up to 5 mm
                                                                                 depth carrying HELIFACE and
                                                                                 GRIP inserts. Internal coolant.
                                                                                 3-6 mm width inserts can be
                                                                                 mounted in the same pocket.





 Tool: TNFFA see page 584  Main Applications
 Insert: TNF 3-6C…
            A                              B                               C

                CW                              CW                             CW



           CDX                              CDX                            CDX

                             DAXN                           DAXN                          DAXN

           Grooving Next to a Shaft       External Grooving               Internal Grooving
