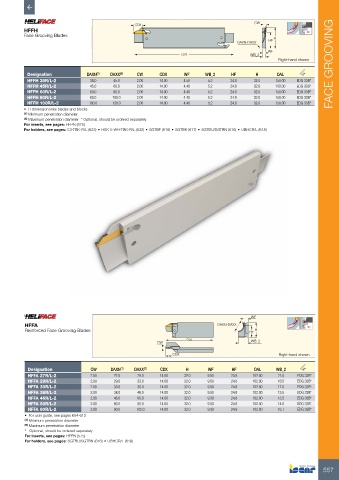

Page 559 - ISCAR(TURNING-CATALOG-42-2022)

CDX CW
HFFH
Face Grooving Blades H
DAXN-DAXX HF
WF
OAL WB_2
Right-hand shown FACE GROOVING

Designation DAXN (1) DAXX (2) CW CDX WF WB_2 HF H OAL
HFFH 38R/L-2 38.0 45.0 2.00 14.00 4.50 5.2 24.8 32.0 150.00 EDG 33B*
HFFH 45R/L-2 45.0 60.0 2.00 14.00 4.40 5.2 24.8 32.0 150.00 EDG 33B*
HFFH 60R/L-2 60.0 80.0 2.00 14.00 4.40 5.2 24.8 32.0 150.00 EDG 33B*
HFFH 80R/L-2 80.0 100.0 2.00 14.00 4.40 5.2 24.8 32.0 150.00 EDG 33B*
HFFH 100R/L-2 100.0 130.0 2.00 14.00 4.40 5.2 24.8 32.0 150.00 EDG 33B*
• H dimension links blades and blocks
(1) Minimum penetration diameter
(2) Maximum penetration diameter * Optional, should be ordered separately
For inserts, see pages: HFPN (575)
For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBK (617) • SGTBU/SGTBN (616) • UBHCR/L (618)

WF

HFFA DAXN-DAXX
Reinforced Face Grooving Blades HF H
OAL
CW WB_2
CDX Right-hand shown

Designation CW DAXN (1) DAXX (2) CDX H WF HF OAL WB_2
HFFA 27R/L-2 2.00 27.0 29.0 14.00 32.0 9.50 24.8 102.00 21.0 EDG 33B*
HFFA 29R/L-2 2.00 29.0 33.0 14.00 32.0 9.50 24.8 102.00 18.5 EDG 33B*
HFFA 33R/L-2 2.00 33.0 38.0 14.00 32.0 9.50 24.8 102.00 17.5 EDG 33B*
HFFA 38R/L-2 2.00 38.0 46.0 14.00 32.0 9.50 24.8 102.00 13.5 EDG 33B*
HFFA 46R/L-2 2.00 46.0 60.0 14.00 32.0 9.50 24.8 102.00 13.5 EDG 33B*
HFFA 60R/L-2 2.00 60.0 80.0 14.00 32.0 9.50 24.8 102.00 14.0 EDG 33B*
HFFA 80R/L-2 2.00 80.0 105.0 14.00 32.0 9.50 24.8 102.00 16.1 EDG 33B*
• For user guide, see pages 604-613
(1) Minimum penetration diameter
(2) Maximum penetration diameter
* Optional, should be ordered separately
For inserts, see pages: HFPN (575)
For holders, see pages: SGTBU/SGTBN (616) • UBHCR/L (618)
