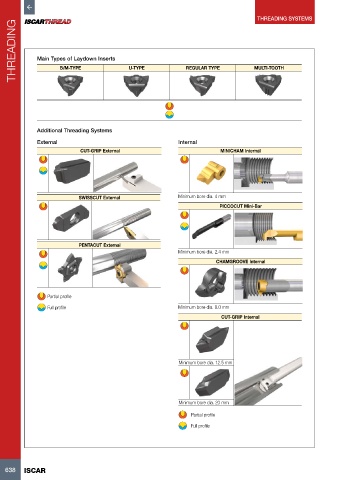

P. 640
THREADING SYSTEMS
THREADING Main Types of Laydown Inserts U-TYPE REGULAR TYPE MULTI-TOOTH
B/M-TYPE
Additional Threading Systems
External Internal
CUT-GRIP External MINICHAM Internal
SWISSCUT External Minimum bore dia. 4 mm
PICCOCUT Mini-Bar
PENTACUT External
Minimum bore dia. 2.4 mm
CHAMGROOVE Internal
Partial profile
Full profile Minimum bore dia. 8.0 mm
CUT-GRIP Internal
Minimum bore dia. 12.5 mm
Minimum bore dia. 20 mm
Partial profile
Full profile
638 ISCAR
