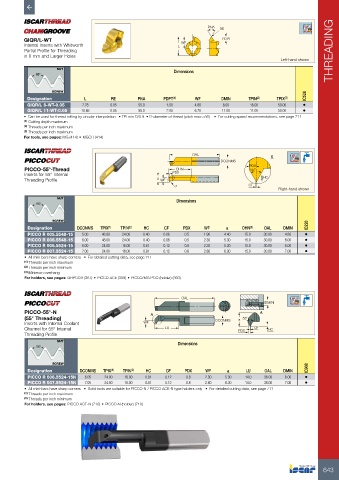

Page 645 - ISCAR(TURNING-CATALOG-42-2022)

PNA RE
GIQR/L-WT PDPT
Internal Inserts with Whitworth L WF
Partial Profile for Threading THREADING
in 8 mm and Larger Holes
Left-hand shown
NUT Dimensions
55°

SCREW
Designation L RE PNA PDPT (1) WF DMIN TPIN (2) TPIX (3) IC528
GIQR/L 8-WT-0.05 7.78 0.05 55.0 1.50 4.80 8.00 16.00 50.00 •
GIQR/L 11-WT-0.05 10.68 0.05 55.0 2.00 6.70 11.00 11.00 50.00 •
• Can be used for thread milling by circular interpolation • TPI min D/5.9 • D-diameter of thread (pitch max<=W) • For cutting speed recommendations, see page 711
(1) Cutting depth maximum
(3) Threads per inch maximum
(3) Threads per inch maximum
For tools, see pages: MG (414) • MGCH (414)

OAL
DCONMS X
PICCO-55°-Thread OHN PDX
55°
Inserts for 55° Internal PDX HC
Threading Profile a WF
x CF
Right-hand shown
NUT Dimensions
55°

SCREW
Designation DCONMS TPIX (1) TPIN (2) HC CF PDX WF a OHN (3) OAL DMIN IC228
PICCO R 005.5548-15 5.00 48.00 24.00 0.40 0.06 0.5 1.90 4.40 15.0 30.00 4.80 •
PICCO R 006.5548-15 6.00 48.00 24.00 0.40 0.06 0.5 2.30 5.30 15.0 30.00 6.00 •
PICCO R 006.5524-15 6.00 24.00 16.00 0.81 0.12 0.8 2.30 5.30 15.0 30.00 6.00 •
PICCO R 007.5524-15 7.00 24.00 16.00 0.81 0.12 0.8 2.80 6.30 15.0 30.00 7.00 •
• All mini-bars have sharp corners • For detailed cutting data, see page 711
(1) Threads per inch maximum
(2) Threads per inch minimum
(3) Minimum overhang
For holders, see pages: GHPCOR (361) • PICCO ACE (359) • PICCO/MG PCO (holder) (360)

OAL
DMIN

PICCO-55°-N A A
(55° Threading) DCONMS a 55˚

Inserts with Internal Coolant WF
Channel for 55° Internal LU PDX CF HC
Threading Profile
NUT
55° Dimensions

SCREW
Designation DCONMS TPIX (1) TPIN (2) HC CF PDX WF a LU OAL DMIN IC908
PICCO R 006.5524-15N 6.05 24.00 16.00 0.81 0.12 0.8 2.30 5.30 14.0 36.00 6.00 •
PICCO R 007.5524-15N 7.05 24.00 16.00 0.81 0.12 0.8 2.80 6.30 14.0 36.00 7.00 •
• All mini-bars have sharp corners • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only • For detailed cutting data, see page 711
(1) Threads per inch maximum
(2) Threads per inch minimum
For holders, see pages: PICCO ACE-N (710) • PICCO-N (holder) (710)

643
