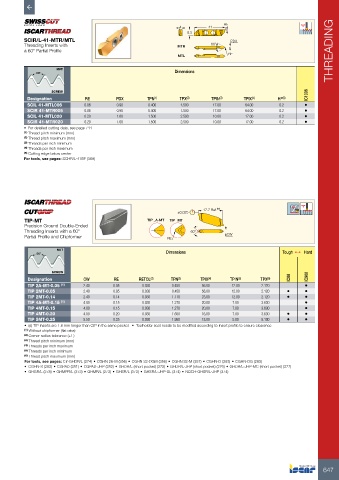

Page 649 - ISCAR(TURNING-CATALOG-42-2022)

HF
4 8.5 41
SCIR/L-41-MTR/MTL PDX
Threading Inserts with MTR 60°
a 60° Partial Profile THREADING
MTL RE

NUT
60° Dimensions

SCREW
Designation RE PDX TPN (1) TPX (2) TPIN (3) TPIX (4) HF (5) IC1008
SCIL 41-MTL006 0.06 0.90 0.400 1.500 17.00 64.00 0.2 •
SCIR 41-MTR006 0.06 0.90 0.400 1.500 17.00 64.00 0.2 •
SCIL 41-MTL020 0.20 1.60 1.500 2.500 10.00 17.00 0.2 •
SCIR 41-MTR020 0.20 1.60 1.500 2.500 10.00 17.00 0.2 •
• For detailed cutting data, see page 711
(1) Thread pitch minimum (mm)
(2) Thread pitch maximum (mm)
(3) Threads per inch minimum
(4) Threads per inch maximum
(5) Cutting edge below center
For tools, see pages: SCHR/L-41BF (369)

±0.025 17.7 Ref. (a)

TIP-MT TIP _A-MT TIP _MT
Precision Ground Double-Ended
Threading Inserts with a 60° 60°
Partial Profile and Chipformer RE CW

NUT
60° Dimensions Tough 1 Hard

SCREW
Designation CW RE RETOL (2) TPN (3) TPIX (4) TPIN (5) TPX (6) IC08 IC908
TIP 2A-MT-0.05 (1) 2.40 0.05 0.030 0.450 56.00 12.00 2.120 •
TIP 2MT-0.05 2.40 0.05 0.030 0.450 56.00 12.00 2.120 • •
TIP 2MT-0.14 2.40 0.14 0.030 1.110 23.00 12.00 2.120 • •
TIP 4A-MT-0.15 (1) 4.00 0.15 0.030 1.270 20.00 7.00 3.630 •
TIP 4MT-0.15 4.00 0.15 0.030 1.270 20.00 7.00 3.630 •
TIP 4MT-0.20 4.00 0.20 0.030 1.600 16.00 7.00 3.630 • •
TIP 5MT-0.25 5.50 0.25 0.030 1.950 13.00 5.00 5.100 • •
• (a) TIP inserts are 1.6 mm longer than GIP in the same pocket • Toolholder seat needs to be modified according to insert profile to ensure clearance
(1) Without chipformer (flat rake)
(2) Corner radius tolerance (+/-)
(3) Thread pitch minimum (mm)
(4) Threads per inch maximum
(5) Threads per inch minimum
(6) Thread pitch maximum (mm)
For tools, see pages: C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283)
• CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277)
• GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373) • GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)

647
