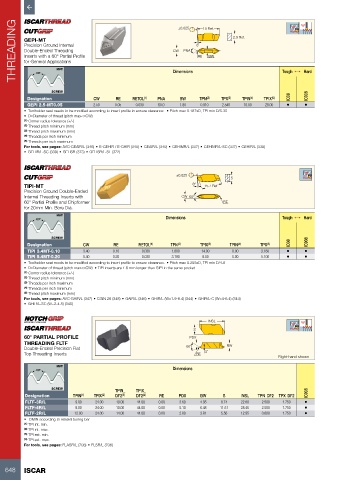

Page 650 - ISCAR(TURNING-CATALOG-42-2022)

THREADING GEPI-MT NUT CW ±0.025 8˚ RE 10 Ref. 2.9 Ref.

Precision Ground Internal
Double-Ended Threading
PNA
Inserts with a 60° Partial Profile
BW
for General Applications
Dimensions
60°

SCREW Tough 1 Hard
Designation CW RE RETOL (1) PNA BW TPN (2) TPX (3) TPIN (4) TPIX (5) IC08 IC908
GEPI 2.5-MT0.05 2.50 0.05 0.030 60.0 1.80 0.910 2.540 10.00 28.00 • •
• Toolholder seat needs to be modified according to insert profile to ensure clearance • Pitch max 0.187xD, TPI min D/5.35
• D=Diameter of thread (pitch max<=CW)
(1) Corner radius tolerance (+/-)
(2) Thread pitch minimum (mm)
(3) Thread pitch maximum (mm)
(4) Threads per inch minimum
(5) Threads per inch maximum
For tools, see pages: AVC-GEAIR/L (346) • E-GEHIR / E-GHIR (340) • GEAIR/L (340) • GEHIMR/L (337) • GEHIMR/L-SC (337) • GEHIR/L (338)
• GEHIR/L-SC (339) • GEHSR (373) • GEHSR/L-SL (372)

±0.025 5
TIPI-MT 8° 15.7 Ref
Precision Ground Double-Ended
Internal Threading Inserts with CW 60°
60° Partial Profile and Chipformer RE
for 20mm Min. Bore Dia.
NUT
60° Dimensions Tough 1 Hard

SCREW
Designation CW RE RETOL (1) TPN (2) TPIX (3) TPIN (4) TPX (5) IC08 IC908
TIPI 3.4MT-0.10 3.40 0.10 0.030 1.800 14.00 8.00 3.180 • •
TIPI 5.4MT-0.20 5.40 0.20 0.030 3.190 8.00 5.00 5.100 • •
• Toolholder seat needs to be modified according to insert profile to ensure clearance. • Pitch max 0.205xD, TPI min D/4.8
• D=Diameter of thread (pitch max<=CW) • TIPI inserts are 1.6 mm longer than GIPI in the same pocket
(1) Corner radius tolerance (+/-)
(2) Thread pitch minimum (mm)
(3) Threads per inch maximum
(4) Threads per inch minimum
(5) Thread pitch maximum (mm)
For tools, see pages: AVC-GAIR/L (347) • CGIN 26 (348) • GAIR/L (346) • GHIR/L (W=1.9-6.4) (344) • GHIR/L-C (W=4-6.4) (344)
• GHIR/L-SC (W=2-4.8) (345)

INSL
S
60° PARTIAL PROFILE PDX
THREADING FLTF BW
Double-Ended Precision Flat 60˚
Top Threading Inserts RE 3˚
Right-hand shown
NUT
60° Dimensions

SCREW
TPIN_ TPIX_
Designation TPIN (1) TPIX (2) DF2 (3) DF2 (4) RE PDX BW S INSL TPN_DF2 TPX_DF2 IC908
FLTF-3R/L 9.00 24.00 10.00 44.00 0.00 3.60 4.95 8.74 22.60 2.500 1.750 •
FLTF-4R/L 9.00 24.00 10.00 44.00 0.00 5.10 6.48 11.51 28.45 2.500 1.750 •
FLTF-2R/L 12.00 24.00 14.00 44.00 0.00 2.80 3.81 5.56 12.95 0.600 1.750 •
• DMIN according to related boring bar
(1) TPI int. min.
(2) TPI int. max.
(3) TPI ext. min.
(4) TPI ext. max.
For tools, see pages: FLASR/L (708) • FLSR/L (708)

648 ISCAR
