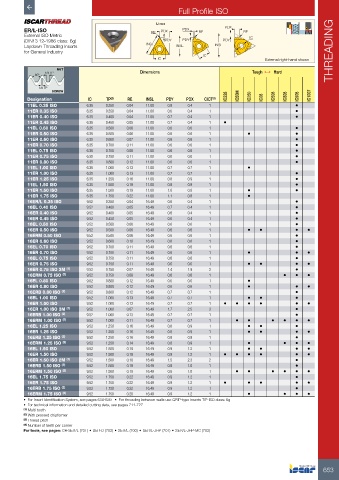

Page 655 - ISCAR(TURNING-CATALOG-42-2022)
P. 655
Full Profile ISO
U-
ER/L-ISO RE PDX PDX RE PDX RE
External ISO Metric IC
(DIN13 12-1986 class: 6g) PDY PDY PDY
Laydown Threading Inserts INSL INSL INSL
for General Industry THREADING
IC
IC External right-hand shown
NUT
1/4 TP Dimensions Tough 1 Hard
60°
1/8 TP
SCREW
Designation IC TP (3) RE INSL PDY PDX CICT (4) IC228 IC50M IC250 IC08 IC508 IC808 IC908 IC1007
11EL 0.35 ISO 6.35 0.350 0.04 11.00 0.8 0.4 1 •
11ER 0.35 ISO 6.35 0.350 0.04 11.00 0.6 0.4 1 •
11ER 0.40 ISO 6.35 0.400 0.04 11.00 0.7 0.4 1 •
11ER 0.45 ISO 6.35 0.450 0.05 11.00 0.7 0.4 1 •
11EL 0.50 ISO 6.35 0.500 0.06 11.00 0.6 0.6 1 •
11ER 0.50 ISO 6.35 0.500 0.06 11.00 0.6 0.6 1 • •
11ER 0.60 ISO 6.35 0.600 0.07 11.00 0.6 0.6 1 •
11ER 0.70 ISO 6.35 0.700 0.11 11.00 0.6 0.6 1 •
11EL 0.75 ISO 6.35 0.750 0.08 11.00 0.6 0.6 1 •
11ER 0.75 ISO 6.35 0.750 0.11 11.00 0.6 0.6 1 •
11ER 0.80 ISO 6.35 0.800 0.12 11.00 0.6 0.6 1 •
11EL 1.00 ISO 6.35 1.000 0.13 11.00 0.7 0.7 1 •
11ER 1.00 ISO 6.35 1.000 0.13 11.00 0.7 0.7 1 •
11ER 1.25 ISO 6.35 1.250 0.16 11.00 0.8 0.9 1 •
11EL 1.50 ISO 6.35 1.500 0.19 11.00 0.8 0.9 1 •
11ER 1.50 ISO 6.35 1.500 0.19 11.00 1.0 0.8 1 • •
11ER 1.75 ISO 6.35 1.750 0.22 11.00 1.1 0.8 1 •
16ER/L 0.35 ISO 9.52 0.350 0.04 16.49 0.6 0.4 1 •
16EL 0.40 ISO 9.52 0.400 0.05 16.49 0.7 0.4 1 •
16ER 0.40 ISO 9.52 0.400 0.05 16.49 0.6 0.4 1 •
16ER 0.45 ISO 9.52 0.450 0.05 16.49 0.6 0.4 1 •
16EL 0.50 ISO 9.52 0.500 0.06 16.49 0.6 0.6 1 •
16ER 0.50 ISO 9.52 0.500 0.06 16.49 0.6 0.6 1 • • • •
16ERM 0.50 ISO 9.52 0.500 0.06 16.49 0.6 0.6 1 •
16ER 0.60 ISO 9.52 0.600 0.10 16.49 0.6 0.6 1 •
16EL 0.70 ISO 9.52 0.700 0.11 16.49 0.6 0.6 1 •
16ER 0.70 ISO 9.52 0.700 0.11 16.49 0.6 0.6 1 • • •
16EL 0.75 ISO 9.52 0.750 0.11 16.49 0.6 0.6 1 •
16ER 0.75 ISO 9.52 0.750 0.11 16.49 0.6 0.6 1 • • • •
16ER 0.75 ISO 3M (1) 9.52 0.750 0.07 16.49 1.4 1.9 3 •
16ERM 0.75 ISO (2) 9.52 0.750 0.08 16.49 0.6 0.6 1 • • •
16EL 0.80 ISO 9.52 0.800 0.12 16.49 0.6 0.6 1 •
16ER 0.80 ISO 9.52 0.800 0.12 16.49 0.6 0.6 1 • • •
16ERB 0.80 ISO (2) 9.52 0.800 0.12 16.49 0.7 0.7 1 •
16EL 1.00 ISO 9.52 1.000 0.13 16.49 0.7 0.7 1 • • •
16ER 1.00 ISO 9.52 1.000 0.13 16.49 0.7 0.7 1 • • • • • •
16ER 1.00 ISO 3M (1) 9.52 1.000 0.07 16.49 1.7 2.5 3 •
16ERB 1.00 ISO (2) 9.52 1.000 0.13 16.49 0.7 0.7 1 •
16ERM 1.00 ISO (2) 9.52 1.000 0.11 16.49 0.7 0.7 1 • • • • • •
16EL 1.25 ISO 9.52 1.250 0.16 16.49 0.8 0.9 1 • • •
16ER 1.25 ISO 9.52 1.250 0.16 16.49 0.8 0.9 1 • • • •
16ERB 1.25 ISO (2) 9.52 1.250 0.16 16.49 0.8 0.9 1 •
16ERM 1.25 ISO (2) 9.52 1.250 0.14 16.49 0.8 0.9 1 • • • •
16EL 1.50 ISO 9.52 1.500 0.19 16.49 0.9 1.2 1 • • • •
16ER 1.50 ISO 9.52 1.500 0.19 16.49 0.9 1.2 1 • • • • • •
16ER 1.50 ISO 2M (1) 9.52 1.500 0.18 16.49 1.5 2.3 2 •
16ERB 1.50 ISO (2) 9.52 1.500 0.19 16.49 0.8 1.0 1 •
16ERM 1.50 ISO (2) 9.52 1.500 0.19 16.49 0.8 1.0 1 • • • • • •
16EL 1.75 ISO 9.52 1.750 0.22 16.49 0.9 1.2 1 •
16ER 1.75 ISO 9.52 1.750 0.22 16.49 0.9 1.2 1 • • • • •
16ERB 1.75 ISO (2) 9.52 1.750 0.22 16.49 0.9 1.2 1 •
16ERM 1.75 ISO (2) 9.52 1.750 0.20 16.49 0.9 1.2 1 • • • •
• For Insert Identification System, see pages 638-639 • For threading between walls use GRIP-type inserts TIP-ISO class: 6g
• For technical information and detailed cutting data, see pages 711-727
(1) Multi-tooth
(2) With pressed chipformer
(3) Thread pitch
(4) Number of teeth per corner
For tools, see pages: C#-SER/L (701) • SER-D (702) • SER/L (700) • SER/L-JHP (701) • SER/L-JHP-MC (702)
653
