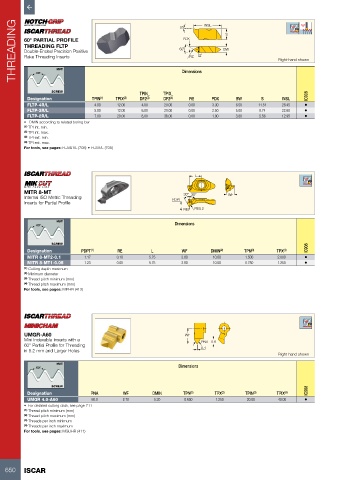

Page 652 - ISCAR(TURNING-CATALOG-42-2022)

THREADING 60° PARTIAL PROFILE 60˚ Dimensions 3˚ INSL BW Right-hand shown

5˚
S
PDX
THREADING FLTP
Double-Ended Precision Positive
Rake Threading Inserts
RE
NUT
60°

SCREW TPIN_ TPIX_
Designation TPIN (1) TPIX (2) DF2 (3) DF2 (4) RE PDX BW S INSL IC908
FLTP-4R/L 4.00 12.00 4.00 20.00 0.00 3.30 6.50 11.51 28.45 •
FLTP-3R/L 5.00 12.00 6.00 20.00 0.00 2.50 5.00 8.74 22.60 •
FLTP-2R/L 7.00 20.00 8.00 36.00 0.00 1.90 3.80 5.56 12.95 •
• DMIN according to related boring bar
(1) TPI int. min.
(2) TPI int. max.
(3) TPI ext. min.
(4) TPI ext. max.
For tools, see pages: FLASR/L (708) • FLSR/L (708)

L

MITR 8-MT 30° 30°
Internal ISO Metric Threading PDPT WF
Inserts for Partial Profile
RE RE0.2

NUT
60° Dimensions

SCREW
Designation PDPT (1) RE L WF DMIN (2) TPN (3) TPX (4) IC908
MITR 8-MT2-0.1 1.17 0.10 5.75 3.80 10.00 1.500 2.000 •
MITR 8-MT1-0.05 1.23 0.05 5.75 3.80 10.00 0.750 1.250 •
(1) Cutting depth maximum
(2) Minimum diameter
(3) Thread pitch minimum (mm)
(4) Thread pitch maximum (mm)
For tools, see pages: MIFHR (413)

UMGR-A60 WF
Mini Indexable Inserts with a PNA 0.8
60° Partial Profile for Threading 0.1
in 5.2 mm and Larger Holes
Right-hand shown
NUT
60° Dimensions

SCREW
Designation PNA WF DMIN TPN (1) TPX (2) TPIN (3) TPIX (4) IC508
UMGR 4.0-A60 60.0 2.70 5.20 0.600 1.250 20.00 40.00 •
• For detailed cutting data, see page 711
(1) Thread pitch minimum (mm)
(2) Thread pitch maximum (mm)
(3) Threads per inch minimum
(4) Threads per inch maximum
For tools, see pages: MGUHR (411)

650 ISCAR
