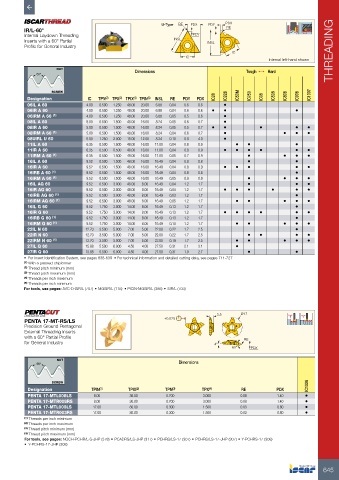

U-Type RE PDX PDY PDX
IR/L-60° RE
Internal Laydown Threading PDY
Inserts with a 60° Partial lNSL lNSL
Profile for General Industry
IC THREADING
IC
Internal left-hand shown
NUT Dimensions
60° Tough 1 Hard

SCREW
Designation IC TPN (2) TPX (3) TPIX (4) TPIN (5) INSL RE PDY PDX IC28 IC228 IC50M IC250 IC08 IC508 IC808 IC908 IC1007
06IL A 60 4.00 0.500 1.250 48.00 20.00 6.88 0.04 0.6 0.6 •
06IR A 60 4.00 0.500 1.250 48.00 20.00 6.88 0.04 0.6 0.6 • • •
06IRM A 60 (1) 4.00 0.500 1.250 48.00 20.00 6.88 0.05 0.5 0.6 •
08IL A 60 5.00 0.500 1.500 48.00 16.00 8.24 0.05 0.6 0.7 •
08IR A 60 5.00 0.500 1.500 48.00 16.00 8.24 0.05 0.5 0.7 • • • • •
08IRM A 60 (1) 5.00 0.500 1.500 48.00 16.00 8.24 0.04 0.6 0.7 • • • •
08UIRL U 60 5.00 1.250 2.000 18.00 12.00 8.24 0.10 0.8 4.0 •
11IL A 60 6.35 0.500 1.500 48.00 16.00 11.00 0.04 0.8 0.9 • • •
11IR A 60 6.35 0.500 0.500 48.00 16.00 11.00 0.04 0.8 0.9 • • • • • •
11IRM A 60 (1) 6.35 0.500 1.500 48.00 16.00 11.00 0.05 0.7 0.9 • • • •
16IL A 60 9.52 0.500 1.500 48.00 16.00 16.49 0.04 0.8 0.8 • •
16IR A 60 9.52 0.500 1.500 48.00 16.00 16.49 0.04 0.8 0.9 • • • • •
16IRB A 60 (1) 9.52 0.500 1.500 48.00 16.00 16.49 0.04 0.8 0.8 •
16IRM A 60 (1) 9.52 0.500 1.500 48.00 16.00 16.49 0.05 0.8 0.9 • • • •
16IL AG 60 9.52 0.500 3.000 48.00 8.00 16.49 0.04 1.2 1.7 • • •
16IR AG 60 9.52 0.500 3.000 48.00 8.00 16.49 0.04 1.2 1.7 • • • • • •
16IRB AG 60 (1) 9.52 0.500 3.000 48.00 8.00 16.49 0.03 1.2 1.7 •
16IRM AG 60 (1) 9.52 0.500 3.000 48.00 8.00 16.49 0.05 1.2 1.7 • • • • •
16IL G 60 9.52 1.750 3.000 14.00 8.00 16.49 0.13 1.2 1.7 •
16IR G 60 9.52 1.750 3.000 14.00 8.00 16.49 0.13 1.2 1.7 • • • • • •
16IRB G 60 (1) 9.52 1.750 3.000 14.00 8.00 16.49 0.13 1.2 1.7 •
16IRM G 60 (1) 9.52 1.750 3.000 14.00 8.00 16.49 0.10 1.2 1.7 • • • • •
22IL N 60 12.70 3.500 5.000 7.00 5.00 22.00 0.22 1.7 2.5 •
22IR N 60 12.70 3.500 5.000 7.00 5.00 22.00 0.22 1.7 2.5 • • • •
22IRM N 60 (1) 12.70 3.500 5.000 7.00 5.00 22.00 0.19 1.7 2.5 • • • • •
27IL Q 60 15.88 5.500 6.000 4.50 4.00 27.50 0.31 2.1 3.1 •
27IR Q 60 15.88 5.500 6.000 4.50 4.00 27.50 0.31 1.9 2.7 • •
• For Insert Identification System, see pages 638-639 • For technical information and detailed cutting data, see pages 711-727
(1) With a pressed chipformer
(2) Thread pitch minimum (mm)
(3) Thread pitch maximum (mm)
(4) Threads per inch maximum
(5) Threads per inch minimum
For tools, see pages: AVC-D-SIR/L (707) • MGSIR/L (118) • PICIN-MGSIR/L (386) • SIR/L (703)

3.5 Ø17

PENTA 17-MT-RS/LS ±0.025
Precision Ground Pentagonal
External Threading Inserts
with a 60° Partial Profile RE
for General Industry 4°
60° PDX
NUT
60° Dimensions

SCREW
Designation TPIN (1) TPIX (2) TPN (3) TPX (4) RE PDX IC1008
PENTA 17-MTL008LS 8.00 36.00 0.700 3.000 0.08 1.40 •
PENTA 17-MTR008RS 8.00 36.00 0.700 3.000 0.08 1.40 •
PENTA 17-MTL003LS 17.00 80.00 0.300 1.500 0.03 0.80 •
PENTA 17-MTR003RS 17.00 80.00 0.300 1.500 0.03 0.80 •
(1) Threads per inch minimum
(2) Threads per inch maximum
(3) Thread pitch minimum (mm)
(4) Thread pitch maximum (mm)
For tools, see pages: NQCH-PCHR/L-S-JHP (378) • PCADRS/LS-JHP (317) • PCHRS/LS-17 (307) • PCHRS/LS-17-JHP (307) • Y-PCHRS-17 (308)
• Y-PCHRS-17-JHP (308)
