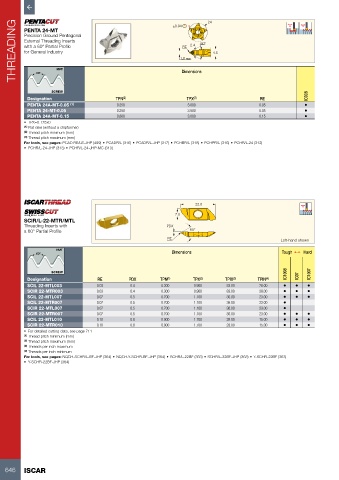

THREADING PENTA 24-MT NUT ±0.04 1.8 max 2.4 60° 24 4.5
Precision Ground Pentagonal
External Threading Inserts
with a 60° Partial Profile
RE
for General Industry

Dimensions
60°

SCREW
Designation TPN (2) TPX (3) RE IC908
PENTA 24A-MT-0.05 (1) 0.250 3.000 0.05 •
PENTA 24-MT-0.05 0.250 3.500 0.05 •
PENTA 24A-MT-0.15 0.800 3.000 0.15 •
• TPX=0.175xD
(1) Flat rake (without a chipformer)
(2) Thread pitch minimum (mm)
(3) Thread pitch maximum (mm)
For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)
• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)

22.0
7.0

SCIR/L-22-MTR/MTL
Threading Inserts with PDX
a 60° Partial Profile 60°
RE Left-hand shown
NUT
60° Dimensions Tough 1 Hard

SCREW IC1008 IC1007
Designation RE PDX TPN (1) TPX (2) TPIX (3) TPIN (4) IC07
SCIL 22-MTL003 0.03 0.4 0.300 0.900 83.00 28.00 • • •
SCIR 22-MTR003 0.03 0.4 0.300 0.900 83.00 28.00 • • •
SCIL 22-MTL007 0.07 0.5 0.700 1.100 36.00 23.00 • • •
SCIL 22-MTR007 0.07 0.5 0.700 1.100 36.00 23.00 •
SCIR 22-MTL007 0.07 0.5 0.700 1.100 36.00 23.00 •
SCIR 22-MTR007 0.07 0.5 0.700 1.100 36.00 23.00 • • •
SCIL 22-MTL010 0.10 0.8 0.900 1.700 28.00 15.00 • • •
SCIR 22-MTR010 0.10 0.8 0.900 1.700 28.00 15.00 • • •
• For detailed cutting data, see page 711
(1) Thread pitch minimum (mm)
(2) Thread pitch maximum (mm)
(3) Threads per inch maximum
(4) Threads per inch minimum
For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363)
• Y-SCHR-22BF-JHP (364)
