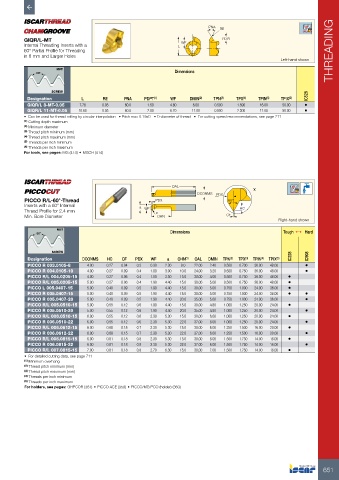

Page 653 - ISCAR(TURNING-CATALOG-42-2022)

PNA RE
GIQR/L-MT PDPT
Internal Threading Inserts with a L WF
60° Partial Profile for Threading THREADING

in 8 mm and Larger Holes
Left-hand shown
NUT
60° Dimensions

SCREW
Designation L RE PNA PDPT (1) WF DMIN (2) TPN (3) TPX (4) TPIN (5) TPIX (6) IC528
GIQR/L 8-MT-0.05 7.78 0.05 60.0 1.50 4.80 8.00 0.500 1.590 16.00 50.00 •
GIQR/L 11-MT-0.05 10.68 0.05 60.0 2.00 6.70 11.00 0.500 2.300 11.00 50.00 •
• Can be used for thread milling by circular interpolation • Pitch max 0.19xD • D-diameter of thread • For cutting speed recommendations, see page 711
(1) Cutting depth maximum
(2) Minimum diameter
(3) Thread pitch minimum (mm)
(4) Thread pitch maximum (mm)
(5) Threads per inch minimum
(6) Threads per inch maximum
For tools, see pages: MG (414) • MGCH (414)

OAL
DCONMS PDX X
PICCO R/L-60°-Thread PDX 60°
Inserts with a 60° Internal a HC
Thread Profile for 2.4 mm WF x
Min. Bore Diameter OHN CF
Right-hand shown
NUT
60° Dimensions Tough 1 Hard

SCREW
Designation DCONMS HC CF PDX WF a OHN (1) OAL DMIN TPN (2) TPX (3) TPIN (4) TPIX (5) IC228 IC908
PICCO R 003.0105-8 4.00 0.27 0.04 0.3 0.30 2.30 8.0 22.00 2.40 0.500 0.700 36.00 48.00 •
PICCO R 004.0105-10 4.00 0.27 0.09 0.4 1.00 3.00 10.0 24.00 3.20 0.500 0.750 36.00 48.00 •
PICCO R/L 004.0205-15 4.00 0.27 0.06 0.4 1.50 3.50 15.0 30.00 4.00 0.500 0.750 36.00 48.00 •
PICCO R/L 005.0205-15 5.00 0.27 0.06 0.4 1.90 4.40 15.0 30.00 5.00 0.500 0.750 36.00 48.00 •
PICCO L 005.0407-15 5.00 0.40 0.09 0.5 1.90 4.40 15.0 30.00 5.00 0.750 1.000 24.00 36.00 •
PICCO R 005.0407-15 5.00 0.40 0.09 0.5 1.90 4.40 15.0 30.00 5.00 0.750 1.000 24.00 36.00 • •
PICCO R 005.0407-20 5.00 0.40 0.09 0.5 1.90 4.40 20.0 35.00 5.00 0.750 1.000 24.00 36.00 •
PICCO R/L 005.0510-15 5.00 0.55 0.12 0.6 1.90 4.40 15.0 30.00 4.80 1.000 1.250 20.00 24.00 •
PICCO R 005.0510-20 5.00 0.55 0.12 0.6 1.90 4.40 20.0 35.00 4.80 1.000 1.250 20.00 24.00 •
PICCO R/L 006.0510-15 6.00 0.55 0.12 0.6 2.30 5.30 15.0 30.00 6.00 1.000 1.250 20.00 24.00 •
PICCO R 006.0510-22 6.00 0.55 0.12 0.6 2.30 5.30 22.0 37.00 6.00 1.000 1.250 20.00 24.00 •
PICCO R/L 006.0612-15 6.00 0.68 0.15 0.7 2.30 5.30 15.0 30.00 6.00 1.250 1.500 16.00 20.00 •
PICCO R 006.0612-22 6.00 0.68 0.15 0.7 2.30 5.30 22.0 37.00 6.00 1.250 1.500 16.00 20.00 •
PICCO R/L 006.0815-15 6.00 0.81 0.18 0.8 2.30 5.30 15.0 30.00 6.00 1.500 1.750 14.00 16.00 •
PICCO R 006.0815-22 6.00 0.81 0.18 0.8 2.30 5.30 22.0 37.00 6.00 1.500 1.750 14.00 16.00 •
PICCO R/L 007.0815-15 7.00 0.81 0.18 0.8 2.70 6.30 15.0 30.00 7.00 1.500 1.750 14.00 16.00 •
• For detailed cutting data, see page 711
(1) Minimum overhang
(2) Thread pitch minimum (mm)
(3) Thread pitch maximum (mm)
(4) Threads per inch minimum
(5) Threads per inch maximum
For holders, see pages: GHPCOR (361) • PICCO ACE (359) • PICCO/MG PCO (holder) (360)
