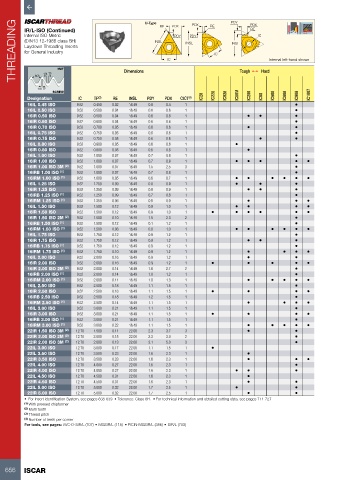

Page 658 - ISCAR(TURNING-CATALOG-42-2022)

THREADING IR/L-ISO (Continued) U-Type INSL RE IC PDX INSL PDX RE IC PDY PDX IC Internal left-hand shown
RE
Internal ISO Metric
PDY
PDY
(DIN13 12-1986 class 6H)
INSL
Laydown Threading Inserts
for General Industry

NUT
1/4 TP
60°
1/8 TP Dimensions Tough 1 Hard
SCREW
Designation IC TP (3) RE INSL PDY PDX CICT (4) IC28 IC228 IC928 IC50M IC250 IC08 IC508 IC808 IC908 IC1007
16IL 0.45 ISO 9.52 0.450 0.02 16.49 0.8 0.4 1 •
16IL 0.50 ISO 9.52 0.500 0.04 16.49 0.6 0.6 1 •
16IR 0.50 ISO 9.52 0.500 0.04 16.49 0.6 0.6 1 • • •
16IR 0.60 ISO 9.52 0.600 0.04 16.49 0.6 0.6 1 •
16IR 0.70 ISO 9.52 0.700 0.05 16.49 0.6 0.6 1 • •
16IL 0.75 ISO 9.52 0.750 0.05 16.49 0.6 0.6 1 •
16IR 0.75 ISO 9.52 0.750 0.05 16.49 0.6 0.6 1 • •
16IL 0.80 ISO 9.52 0.800 0.05 16.49 0.6 0.6 1 •
16IR 0.80 ISO 9.52 0.800 0.05 16.49 0.6 0.6 1 •
16IL 1.00 ISO 9.52 1.000 0.07 16.49 0.7 0.8 1 •
16IR 1.00 ISO 9.52 1.000 0.07 16.49 0.7 0.8 1 • • • • •
16IR 1.00 ISO 3M (2) 9.52 1.000 0.07 16.49 1.5 2.5 3 •
16IRB 1.00 ISO (1) 9.52 1.000 0.07 16.49 0.7 0.8 1 •
16IRM 1.00 ISO (1) 9.52 1.000 0.05 16.49 0.6 0.7 1 • • • • • •
16IL 1.25 ISO 9.52 1.250 0.09 16.49 0.8 0.9 1 • • •
16IR 1.25 ISO 9.52 1.250 0.09 16.49 0.8 0.9 1 • • •
16IRB 1.25 ISO (1) 9.52 1.250 0.09 16.49 0.7 0.8 1 •
16IRM 1.25 ISO (1) 9.52 1.250 0.06 16.49 0.8 0.9 1 • • •
16IL 1.50 ISO 9.52 1.500 0.12 16.49 0.9 1.0 1 • • • •
16IR 1.50 ISO 9.52 1.500 0.12 16.49 0.9 1.0 1 • • • • • •
16IR 1.50 ISO 2M (2) 9.52 1.500 0.10 16.49 1.5 2.3 2 •
16IRB 1.50 ISO (1) 9.52 1.500 0.12 16.49 0.1 1.2 1 •
16IRM 1.50 ISO (1) 9.52 1.500 0.08 16.49 0.8 1.0 1 • • • • • •
16IL 1.75 ISO 9.52 1.750 0.12 16.49 0.9 1.2 1 •
16IR 1.75 ISO 9.52 1.750 0.12 16.49 0.9 1.2 1 • • •
16IRB 1.75 ISO (1) 9.52 1.750 0.12 16.49 0.9 1.2 1 •
16IRM 1.75 ISO (1) 9.52 1.750 0.10 16.49 0.9 1.2 1 • • • •
16IL 2.00 ISO 9.52 2.000 0.16 16.49 0.9 1.2 1 • •
16IR 2.00 ISO 9.52 2.000 0.16 16.49 0.9 1.2 1 • • • • •
16IR 2.00 ISO 2M (2) 9.52 2.000 0.14 16.49 1.6 2.7 2 •
16IRB 2.00 ISO (1) 9.52 2.000 0.14 16.49 1.0 1.2 1 •
16IRM 2.00 ISO (1) 9.52 2.000 0.11 16.49 1.0 1.3 1 • • • • •
16IL 2.50 ISO 9.52 2.500 0.18 16.49 1.1 1.5 1 •
16IR 2.50 ISO 9.52 2.500 0.18 16.49 1.1 1.5 1 • • • •
16IRB 2.50 ISO 9.52 2.500 0.18 16.49 1.2 1.5 1 •
16IRM 2.50 ISO (1) 9.52 2.500 0.14 16.49 1.1 1.5 1 • • • •
16IL 3.00 ISO 9.52 3.000 0.21 16.49 1.1 1.5 1 •
16IR 3.00 ISO 9.52 3.000 0.21 16.49 1.1 1.5 1 • • • •
16IRB 3.00 ISO (1) 9.52 3.000 0.21 16.49 1.1 1.5 1 •
16IRM 3.00 ISO (1) 9.52 3.000 0.22 16.49 1.1 1.5 1 • • • • •
22IR 1.50 ISO 3M (2) 12.70 1.500 0.11 22.00 2.3 3.7 3 • •
22IR 2.00 ISO 2M (2) 12.70 2.000 0.15 22.00 2.3 3.0 2 •
22IR 2.00 ISO 3M (2) 12.70 2.000 0.13 22.00 3.1 5.0 3 •
22IL 3.00 ISO 12.70 3.000 0.17 22.00 1.1 1.5 1 •
22IL 3.50 ISO 12.70 3.500 0.23 22.00 1.6 2.3 1 •
22IR 3.50 ISO 12.70 3.500 0.23 22.00 1.6 2.3 1 • • •
22IL 4.00 ISO 12.70 4.000 0.27 22.00 1.6 2.3 1 •
22IR 4.00 ISO 12.70 4.000 0.27 22.00 1.6 2.3 1 • • •
22IL 4.50 ISO 12.70 4.500 0.31 22.00 1.6 2.3 1 •
22IR 4.50 ISO 12.70 4.500 0.31 22.00 1.6 2.3 1 • •
22IL 5.00 ISO 12.70 5.000 0.32 22.00 1.7 2.5 1 • •
22IR 5.00 ISO 12.70 5.000 0.32 22.00 1.7 2.5 1 • •
• For Insert Identification System, see pages 638-639 • Tolerance: Class 6H. • For technical information and detailed cutting data, see pages 711-727
(1) With pressed chipformer
(2) Multi-tooth
(3) Thread pitch
(4) Number of teeth per corner
For tools, see pages: AVC-D-SIR/L (707) • MGSIR/L (118) • PICIN-MGSIR/L (386) • SIR/L (703)
