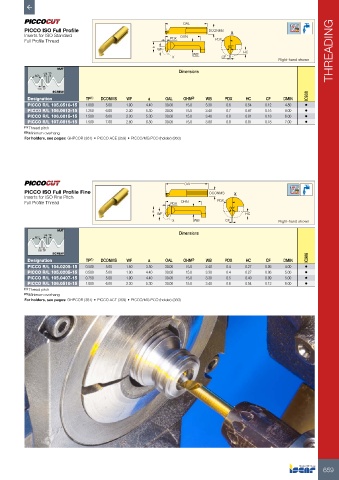

Page 661 - ISCAR(TURNING-CATALOG-42-2022)

OAL
PICCO ISO Full Profile DCONMS
Inserts for ISO Standard PDX OHN X
Full Profile Thread PDX
a 60°
WF THREADING
WB HC
X CF
Right-hand shown
NUT
1/4 TP Dimensions
60°
1/8 TP
SCREW
Designation TP (1) DCONMS WF a OAL OHN (2) WB PDX HC CF DMIN IC908
PICCO R/L 105.0510-15 1.000 5.00 1.90 4.40 30.00 15.0 3.30 0.6 0.54 0.12 4.80 •
PICCO R/L 106.0612-15 1.250 6.00 2.30 5.30 30.00 15.0 3.40 0.7 0.67 0.15 6.00 •
PICCO R/L 106.0815-15 1.500 6.00 2.30 5.30 30.00 15.0 3.40 0.8 0.81 0.18 6.00 •
PICCO R/L 107.0815-15 1.500 7.00 2.80 6.30 30.00 15.0 3.80 0.8 0.81 0.18 7.00 •
(1) Thread pitch
(2) Minimum overhang
For holders, see pages: GHPCOR (361) • PICCO ACE (359) • PICCO/MG PCO (holder) (360)

OAL
PICCO ISO Full Profile Fine DCONMS X
Inserts for ISO Fine Pitch
Full Profile Thread PDX OHN PDX
60°
a
WF HC
X WB CF Right-hand shown
NUT
1/4 TP Dimensions
60°
1/8 TP
SCREW
Designation TP (1) DCONMS WF a OAL OHN (2) WB PDX HC CF DMIN IC908
PICCO R/L 104.0205-15 0.500 5.00 1.50 3.50 30.00 15.0 2.40 0.4 0.27 0.06 4.00 •
PICCO R/L 105.0205-15 0.500 5.00 1.90 4.40 30.00 15.0 3.30 0.4 0.27 0.06 5.00 •
PICCO R/L 105.0407-15 0.750 5.00 1.90 4.40 30.00 15.0 3.30 0.5 0.40 0.09 5.00 •
PICCO R/L 106.0510-15 1.000 6.00 2.30 5.30 30.00 15.0 3.40 0.6 0.54 0.12 6.00 •
(1) Thread pitch
(2) Minimum overhang
For holders, see pages: GHPCOR (361) • PICCO ACE (359) • PICCO/MG PCO (holder) (360)

659
