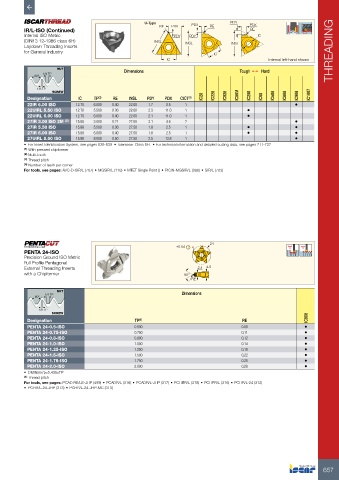

Page 659 - ISCAR(TURNING-CATALOG-42-2022)

U-Type PDX PDY PDX
IR/L-ISO (Continued) RE PDX RE RE
Internal ISO Metric PDY PDY IC
(DIN13 12-1986 class 6H) INSL INSL INSL
Laydown Threading Inserts
for General Industry IC THREADING
IC Internal left-hand shown

NUT
1/4 TP Dimensions Tough 1 Hard
60°
1/8 TP
SCREW
Designation IC TP (3) RE INSL PDY PDX CICT (4) IC28 IC228 IC928 IC50M IC250 IC08 IC508 IC808 IC908 IC1007
22IR 6.00 ISO 12.70 6.000 0.40 22.00 1.7 2.5 1 •
22UIRL 5.50 ISO 12.70 5.500 0.36 22.00 2.3 11.0 1 •
22UIRL 6.00 ISO 12.70 6.000 0.40 22.00 2.1 11.0 1 •
27IR 3.00 ISO 2M (2) 15.88 3.000 0.21 27.50 3.1 4.6 2 •
27IR 5.50 ISO 15.88 5.500 0.36 27.50 1.8 2.5 1 • •
27IR 6.00 ISO 15.88 6.000 0.40 27.50 1.8 2.5 1 • •
27UIRL 8.00 ISO 15.88 8.000 0.50 27.50 2.5 13.8 1 •
• For Insert Identification System, see pages 638-639 • Tolerance: Class 6H. • For technical information and detailed cutting data, see pages 711-727
(1) With pressed chipformer
(2) Multi-tooth
(3) Thread pitch
(4) Number of teeth per corner
For tools, see pages: AVC-D-SIR/L (707) • MGSIR/L (118) • MTET Single Point () • PICIN-MGSIR/L (386) • SIR/L (703)

±0.04 24

PENTA 24-ISO
Precision Ground ISO Metric
Full Profile Pentagonal
External Threading Inserts 2.4 4.5
with a Chipformer 60°
RE
NUT
1/4 TP Dimensions
60°

1/8 TP
SCREW
Designation TP (1) RE IC908
PENTA 24-0.5-ISO 0.500 0.08 •
PENTA 24-0.75-ISO 0.750 0.11 •
PENTA 24-0.8-ISO 0.800 0.12 •
PENTA 24-1.0-ISO 1.000 0.14 •
PENTA 24-1.25-ISO 1.250 0.18 •
PENTA 24-1.5-ISO 1.500 0.22 •
PENTA 24-1.75-ISO 1.750 0.25 •
PENTA 24-2.0-ISO 2.000 0.28 •
• DMIN(mm)=5.435xTP
(1) Thread pitch
For tools, see pages: PCAD RE/LE-JHP (499) • PCADR/L (316) • PCADR/L-JHP (317) • PCHBR/L (318) • PCHPR/L (316) • PCHR/L-24 (312)
• PCHR/L-24-JHP (313) • PCHR/L-24-JHP-MC (313)
