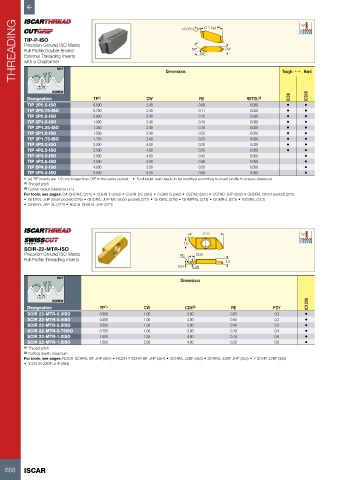

Page 660 - ISCAR(TURNING-CATALOG-42-2022)

THREADING TIP-P-ISO NUT ±0.025 60° RE 17.7 Ref. (a) CW

Precision Ground ISO Metric
Full Profile Double-Ended
External Threading Inserts
with a Chipformer

1/4 TP
60°
1/8 TP Dimensions Tough 1 Hard
SCREW
Designation TP (1) CW RE RETOL (2) IC08 IC908
TIP 2P0.5-ISO 0.500 2.40 0.08 0.030 • •
TIP 2P0.75-ISO 0.750 2.40 0.11 0.030 • •
TIP 2P0.8-ISO 0.800 2.40 0.12 0.030 • •
TIP 2P1.0-ISO 1.000 2.40 0.14 0.030 • •
TIP 2P1.25-ISO 1.250 2.40 0.18 0.030 • •
TIP 2P1.5-ISO 1.500 2.40 0.22 0.030 • •
TIP 2P1.75-ISO 1.750 2.40 0.25 0.030 • •
TIP 4P2.0-ISO 2.000 4.00 0.28 0.030 • •
TIP 4P2.5-ISO 2.500 4.00 0.35 0.050 • •
TIP 4P3.0-ISO 3.000 4.00 0.42 0.050 •
TIP 4P3.5-ISO 3.500 4.00 0.48 0.050 •
TIP 5P4.0-ISO 4.000 5.50 0.55 0.050 •
TIP 5P5.0-ISO 5.000 5.50 0.68 0.050 •
• (a) TIP inserts are 1.6 mm longer than GIP in the same pocket • Toolholder seat needs to be modified according to insert profile to ensure clearance
(1) Thread pitch
(2) Corner radius tolerance (+/-)
For tools, see pages: C#-GHDR/L (274) • CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275)
• GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) • GHSR/L (373)
• GHSR/L-JHP-SL (374) • NQCH-GHSR/L-JHP (374)

22.0

7.0
SCIR-22-MTR-ISO
Precision Ground ISO Metric RE CDX
Full Profile Threading Inserts 3.0
PDY CW
NUT
1/4 TP Dimensions
60°
1/8 TP
SCREW
Designation TP (1) CW CDX (2) RE PDY IC1008
SCIR 22-MTR-0.3ISO 0.300 1.00 3.00 0.03 0.2 •
SCIR 22-MTR-0.4ISO 0.400 1.00 3.00 0.04 0.2 •
SCIR 22-MTR-0.5ISO 0.500 1.00 3.00 0.06 0.3 •
SCIR 22-MTR-0.75ISO 0.750 1.00 3.00 0.10 0.4 •
SCIR 22-MTR-1.0ISO 1.000 1.50 4.00 0.14 0.6 •
SCIR 22-MTR-1.5ISO 1.500 2.00 4.00 0.20 0.8 •
(1) Thread pitch
(2) Cutting depth maximum
For tools, see pages: NQCH-SCHR/L-BF-JHP (364) • NQCH-Y-SCHR-BF-JHP (364) • SCHR/L-22BF (363) • SCHR/L-22BF-JHP (363) • Y-SCHR-22BF (363)
• Y-SCHR-22BF-JHP (364)

658 ISCAR
