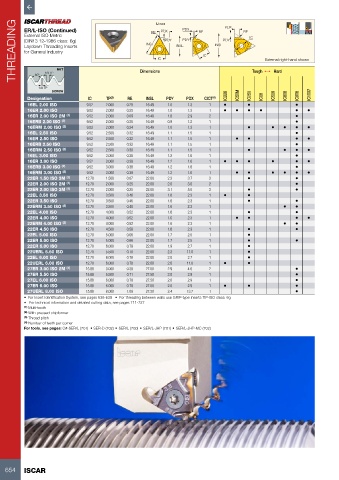

Page 656 - ISCAR(TURNING-CATALOG-42-2022)

THREADING ER/L-ISO (Continued) INSL RE U- PDY INSL PDX RE IC INSL PDY RE IC External right-hand shown
PDX
PDX
External ISO Metric
PDY
(DIN13 12-1986 class: 6g)
Laydown Threading Inserts
for General Industry
IC

NUT
60°

1/8 TP 1/4 TP Dimensions Tough 1 Hard
SCREW
Designation IC TP (3) RE INSL PDY PDX CICT (4) IC228 IC50M IC250 IC08 IC508 IC808 IC908 IC1007
16EL 2.00 ISO 9.52 2.000 0.25 16.49 1.0 1.3 1 • • •
16ER 2.00 ISO 9.52 2.000 0.25 16.49 1.0 1.3 1 • • • • • •
16ER 2.00 ISO 2M (1) 9.52 2.000 0.09 16.49 1.8 2.9 2 •
16ERB 2.00 ISO (2) 9.52 2.000 0.25 16.49 0.9 1.2 1 •
16ERM 2.00 ISO (2) 9.52 2.000 0.24 16.49 1.0 1.3 1 • • • • •
16EL 2.50 ISO 9.52 2.500 0.32 16.49 1.1 1.5 1 •
16ER 2.50 ISO 9.52 2.500 0.32 16.49 1.1 1.5 1 • • • •
16ERB 2.50 ISO 9.52 2.500 0.32 16.49 1.1 1.5 1 •
16ERM 2.50 ISO (2) 9.52 2.500 0.30 16.49 1.1 1.5 1 • • • •
16EL 3.00 ISO 9.52 3.000 0.38 16.49 1.2 1.6 1 •
16ER 3.00 ISO 9.52 3.000 0.38 16.49 1.2 1.6 1 • • • • • •
16ERB 3.00 ISO (2) 9.52 3.000 0.38 16.49 1.2 1.6 1 •
16ERM 3.00 ISO (2) 9.52 3.000 0.38 16.49 1.2 1.6 1 • • • • • •
22ER 1.50 ISO 3M (1) 12.70 1.500 0.07 22.00 2.3 3.7 3 • •
22ER 2.00 ISO 2M (1) 12.70 2.000 0.25 22.00 2.0 3.0 2 •
22ER 2.00 ISO 3M (1) 12.70 2.000 0.25 22.00 3.1 5.0 3 • •
22EL 3.50 ISO 12.70 3.500 0.46 22.00 1.6 2.3 1 • •
22ER 3.50 ISO 12.70 3.500 0.46 22.00 1.6 2.3 1 • •
22ERM 3.50 ISO (2) 12.70 3.500 0.48 22.00 1.6 2.3 1 • •
22EL 4.00 ISO 12.70 4.000 0.52 22.00 1.6 2.3 1 • •
22ER 4.00 ISO 12.70 4.000 0.52 22.00 1.6 2.3 1 • • • •
22ERM 4.00 ISO (2) 12.70 4.000 0.52 22.00 1.6 2.3 1 • •
22ER 4.50 ISO 12.70 4.500 0.58 22.00 1.6 2.3 1 • •
22EL 5.00 ISO 12.70 5.000 0.66 22.00 1.7 2.5 1 •
22ER 5.00 ISO 12.70 5.000 0.66 22.00 1.7 2.5 1 • •
22ER 6.00 ISO 12.70 6.000 0.79 22.00 1.9 2.7 1 •
22UERL 5.50 ISO 12.70 5.500 0.70 22.00 2.3 11.0 1 •
22EL 6.00 ISO 12.70 6.000 0.78 22.00 2.0 2.7 1 •
22UERL 6.00 ISO 12.70 6.000 0.78 22.00 2.6 11.0 1 • •
27ER 3.00 ISO 2M (1) 15.88 3.000 0.38 27.50 2.9 4.6 2 •
27ER 5.50 ISO 15.88 5.500 0.71 27.50 2.0 2.9 1 •
27EL 6.00 ISO 15.88 6.000 0.78 27.50 2.0 2.9 1 •
27ER 6.00 ISO 15.88 6.000 0.78 27.50 2.0 2.9 1 • • •
27UERL 8.00 ISO 15.88 8.000 1.08 27.50 2.4 13.7 1 •
• For Insert Identification System, see pages 638-639 • For threading between walls use GRIP-type inserts TIP-ISO class: 6g
• For technical information and detailed cutting data, see pages 711-727
(1) Multi-tooth
(2) With pressed chipformer
(3) Thread pitch
(4) Number of teeth per corner
For tools, see pages: C#-SER/L (701) • SER-D (702) • SER/L (700) • SER/L-JHP (701) • SER/L-JHP-MC (702)
