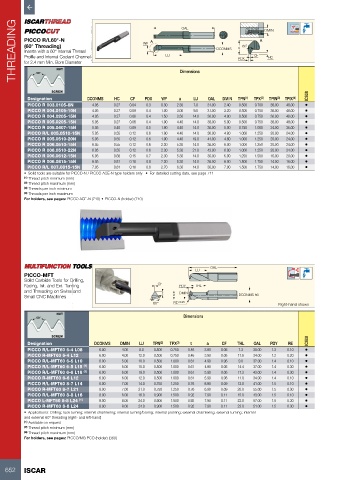

Page 654 - ISCAR(TURNING-CATALOG-42-2022)

THREADING PICCO R/L 60°-N WF A LU Dimensions DCONMS PDX 60˚ CF A DMIN

OAL
(60° Threading)
a
Inserts with a 60° Internal Thread

Profile and Internal Coolant Channel
HC
for 2.4 mm Min. Bore Diameter
NUT
60°

SCREW
Designation DCONMS HC CF PDX WF a LU OAL DMIN TPN (1) TPX (2) TPIN (3) TPIX (4) IC908
PICCO R 003.0105-8N 4.05 0.27 0.04 0.3 0.30 2.30 7.0 31.00 2.40 0.500 0.700 36.00 48.00 •
PICCO R 004.0105-10N 4.05 0.27 0.09 0.4 1.00 3.00 9.0 31.00 3.20 0.500 0.750 36.00 48.00 •
PICCO R 004.0205-15N 4.05 0.27 0.06 0.4 1.50 3.50 14.0 36.00 4.00 0.500 0.750 36.00 48.00 •
PICCO R 005.0205-15N 5.05 0.27 0.06 0.4 1.90 4.40 14.0 36.00 5.00 0.500 0.750 36.00 48.00 •
PICCO R 005.0407-15N 5.05 0.40 0.09 0.5 1.90 4.40 14.0 36.00 5.00 0.750 1.000 24.00 36.00 •
PICCO R/L 005.0510-15N 5.05 0.55 0.12 0.6 1.90 4.40 14.0 36.00 4.80 1.000 1.250 20.00 24.00 •
PICCO R 005.0510-20N 5.05 0.55 0.12 0.6 1.90 4.40 19.0 41.00 4.80 1.000 1.250 20.00 24.00 •
PICCO R 006.0510-15N 6.05 0.55 0.12 0.6 2.30 5.30 14.0 36.00 6.00 1.000 1.250 20.00 24.00 •
PICCO R 006.0510-22N 6.05 0.55 0.12 0.6 2.30 5.30 21.0 43.00 6.00 1.000 1.250 20.00 24.00 •
PICCO R 006.0612-15N 6.05 0.68 0.15 0.7 2.30 5.30 14.0 36.00 6.00 1.250 1.500 16.00 20.00 •
PICCO R 006.0815-15N 6.05 0.81 0.18 0.8 2.30 5.30 14.0 36.00 6.00 1.500 1.750 14.00 16.00 •
PICCO R/L 007.0815-15N 7.05 0.81 0.18 0.8 2.70 6.30 14.0 36.00 7.00 1.500 1.750 14.00 16.00 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only • For detailed cutting data, see page 711
(1) Thread pitch minimum (mm)
(2) Thread pitch maximum (mm)
(3) Threads per inch minimum
(4) Threads per inch maximum
For holders, see pages: PICCO ACE-N (710) • PICCO-N (holder) (710)

LU OAL

PICCO-MFT
Solid Carbide Tools for Drilling,
Facing, Int. and Ext. Turning CF PDY THL
and Threading on Swiss and t DMIN
Small CNC Machines a DCONMS h6
60° RE +0.05 Right-hand shown
NUT
60° Dimensions

SCREW
Designation DCONMS DMIN LU TPN (2) TPX (3) t a CF THL OAL PDY RE IC908
PICCO R/L-MFT60 6-4 L08 6.00 4.00 8.0 0.500 0.750 0.46 3.90 0.06 7.3 30.00 1.3 0.10 •
PICCO R-MFT60 6-4 L12 6.00 4.00 12.0 0.500 0.750 0.46 3.90 0.06 11.6 34.00 1.2 0.20 •
PICCO R/L-MFT60 6-5 L10 6.00 5.00 10.0 0.500 1.000 0.61 4.90 0.06 9.0 32.00 1.4 0.10 •
PICCO R/L-MFT60 6-5 L15 (1) 6.00 5.00 15.0 0.500 1.000 0.61 4.90 0.06 14.4 37.00 1.4 0.30 •
PICCO R/L-MFT60 6-6 L18 (1) 6.00 6.00 18.0 0.500 1.000 0.61 5.90 0.06 17.3 43.00 1.4 0.30 •
PICCO R-MFT60 6-6 L12 6.00 6.00 12.0 0.500 1.000 0.61 5.90 0.06 11.0 34.00 1.4 0.10 •
PICCO R/L-MFT60 8-7 L14 8.00 7.00 14.0 0.750 1.250 0.76 6.90 0.09 13.0 41.00 1.5 0.10 •
PICCO R-MFT60 8-7 L21 8.00 7.00 21.0 0.750 1.250 0.76 6.90 0.09 20.0 55.00 1.5 0.30 •
PICCO R/L-MFT60 8-8 L16 8.00 8.00 16.0 0.900 1.500 0.92 7.90 0.11 15.0 43.00 1.5 0.10 •
PICCO L-MFT60 8-8 L24 (1) 8.00 8.00 24.0 0.900 1.500 0.92 7.90 0.11 23.0 57.00 1.5 0.30 •
PICCO R-MFT60 8-8 L24 8.00 8.00 24.0 0.900 1.500 0.92 7.90 0.11 23.0 51.00 1.5 0.30 •
• Applications: Drilling; face turning; internal chamfering; internal turning/boring; internal profiling; external chamfering; external turning; internal
and external 60° threading (right- and left-hand)
(1) Available on request
(2) Thread pitch minimum (mm)
(3) Thread pitch maximum (mm)
For holders, see pages: PICCO/MG PCO (holder) (360)
