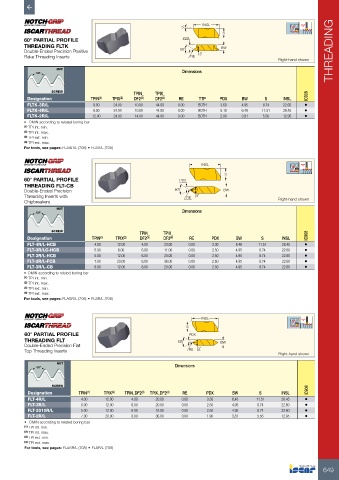

Page 651 - ISCAR(TURNING-CATALOG-42-2022)

INSL
5˚ S
60° PARTIAL PROFILE PDX
THREADING FLTK BW
Double-Ended Precision Positive 60˚ 3˚ THREADING
Rake Threading Inserts RE
Right-hand shown
NUT
60° Dimensions

SCREW TPIN_ TPIX_
Designation TPIN (1) TPIX (2) DF2 (3) DF2 (4) RE TTP PDX BW S INSL IC908
FLTK-3R/L 9.00 24.00 10.00 44.00 0.00 BOTH 3.60 4.95 8.74 22.60 •
FLTK-4R/L 9.00 24.00 10.00 44.00 0.00 BOTH 5.10 6.48 11.51 28.45 •
FLTK-2R/L 12.00 24.00 14.00 44.00 0.00 BOTH 2.80 3.81 5.56 12.95 •
• DMIN according to related boring bar
(1) TPI int. min.
(2) TPI int. max.
(3) TPI ext. min.
(4) TPI ext. max.
For tools, see pages: FLASR/L (708) • FLSR/L (708)

INSL
S

60° PARTIAL PROFILE PDX
THREADING FLT-CB
Double-Ended Precision 60˚ BW
Threading Inserts with RE 3˚
Chipbreakers Right-hand shown
NUT
60° Dimensions

SCREW
TPIN_ TPIX_
Designation TPIN (1) TPIX (2) DF2 (3) DF2 (4) RE PDX BW S INSL IC908
FLT-4R/L-HCB 4.00 12.00 4.00 20.00 0.00 3.30 6.48 11.51 28.45 •
FLT-3R/LC-HCB 5.00 6.00 6.00 11.00 0.00 2.50 4.95 8.74 22.60 •
FLT-3R/L-HCB 5.00 12.00 6.00 20.00 0.00 2.50 4.95 8.74 22.60 •
FLT-3R/L-FCB 7.00 20.00 8.00 36.00 0.00 2.50 4.95 8.74 22.60 •
FLT-3R/L-CB 8.00 12.00 8.00 20.00 0.00 2.50 4.95 8.74 22.60 •
• DMIN according to related boring bar
(1) TPI int. min.
(2) TPI int. max.
(3) TPI ext. min.
(4) TPI ext. max.
For tools, see pages: FLASR/L (708) • FLSR/L (708)

INSL
S

60° PARTIAL PROFILE PDX
THREADING FLT 60˚ BW
Double-Ended Precision Flat
Top Threading Inserts RE 3˚
Right-hand shown
NUT
60° Dimensions

SCREW
Designation TPIN (1) TPIX (2) TPIN_DF2 (3) TPIX_DF2 (4) RE PDX BW S INSL IC908
FLT-4R/L 4.00 12.00 4.00 20.00 0.00 3.30 6.48 11.51 28.45 •
FLT-3R/L 5.00 12.00 6.00 20.00 0.00 2.50 4.95 8.74 22.60 •
FLT-3010R/L 5.00 12.00 6.00 18.00 0.00 2.50 4.95 8.74 22.60 •
FLT-2R/L 7.00 20.00 8.00 36.00 0.00 1.90 3.81 5.56 12.95 •
• DMIN according to related boring bar
(1) TPI int. min.
(2) TPI int. max.
(3) TPI ext. min.
(4) TPI ext. max.
For tools, see pages: FLASR/L (708) • FLSR/L (708)

649
