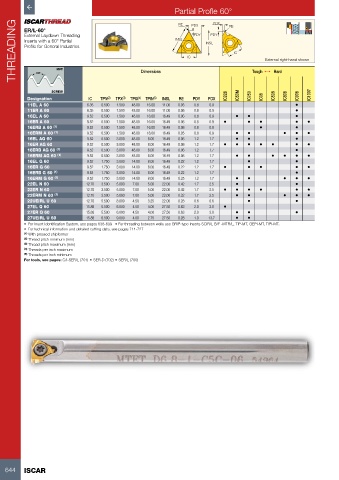

Page 646 - ISCAR(TURNING-CATALOG-42-2022)

Partial Profle 60°

THREADING External Laydown Threading Dimensions INSL IC PDY INSL PDY IC External right-hand shown
PDX
RE
PDX
RE
ER/L-60°
Inserts with a 60° Partial
Profile for General Industries

NUT
60°

SCREW Tough 1 Hard
Designation IC TPN (2) TPX (3) TPIX (4) TPIN (5) INSL RE PDY PDX IC228 IC50M IC250 IC08 IC508 IC808 IC908 IC1007
11EL A 60 6.35 0.500 1.500 48.00 16.00 11.00 0.05 0.8 0.9 •
11ER A 60 6.35 0.500 1.500 48.00 16.00 11.00 0.06 0.8 0.9 •
16EL A 60 9.52 0.500 1.500 48.00 16.00 16.49 0.06 0.8 0.9 • • •
16ER A 60 9.52 0.500 1.500 48.00 16.00 16.49 0.06 0.8 0.9 • • • • •
16ERB A 60 (1) 9.52 0.500 1.500 48.00 16.00 16.49 0.06 0.8 0.8 • •
16ERM A 60 (1) 9.52 0.500 1.500 48.00 16.00 16.49 0.05 0.8 0.9 • • • • •
16EL AG 60 9.52 0.500 3.000 48.00 8.00 16.49 0.06 1.2 1.7 • • •
16ER AG 60 9.52 0.500 3.000 48.00 8.00 16.49 0.06 1.2 1.7 • • • • • • •
16ERB AG 60 (1) 9.52 0.500 3.000 48.00 8.00 16.49 0.06 1.2 1.7 •
16ERM AG 60 (1) 9.52 0.500 3.000 48.00 8.00 16.49 0.06 1.2 1.7 • • • • • •
16EL G 60 9.52 1.750 3.000 14.00 8.00 16.49 0.22 1.2 1.7 • •
16ER G 60 9.52 1.750 3.000 14.00 8.00 16.49 0.22 1.2 1.7 • • • • •
16ERB G 60 (1) 9.52 1.750 3.000 14.00 8.00 16.49 0.22 1.2 1.7 •
16ERM G 60 (1) 9.52 1.750 3.000 14.00 8.00 16.49 0.25 1.2 1.7 • • • • •
22EL N 60 12.70 3.500 5.000 7.00 5.00 22.00 0.42 1.7 2.5 • •
22ER N 60 12.70 3.500 5.000 7.00 5.00 22.00 0.42 1.7 2.5 • • • • • •
22ERM N 60 (1) 12.70 3.500 5.000 7.00 5.00 22.00 0.32 1.7 2.5 • • • • •
22UEIRL U 60 12.70 5.500 8.000 4.50 3.25 22.00 0.28 0.6 0.6 • •
27EL Q 60 15.88 5.500 6.000 4.50 4.00 27.50 0.63 2.0 3.0 •
27ER Q 60 15.88 5.500 6.000 4.50 4.00 27.50 0.63 2.0 3.0 • • •
27UEIRL U 60 15.88 6.500 9.000 4.00 2.75 27.50 0.28 1.0 13.7 • •
• For Insert Identification System, see pages 638-639 • For threading between walls use GRIP-type inserts SCIR/L B/F -MTR/L, TIP-MT, GEPI-MT, TIPI-MT.
• For technical information and detailed cutting data, see pages 711-727
(1) With pressed chipformer
(2) Thread pitch minimum (mm)
(3) Thread pitch maximum (mm)
(4) Threads per inch maximum
(5) Threads per inch minimum
For tools, see pages: C#-SER/L (701) • SER-D (702) • SER/L (700)
