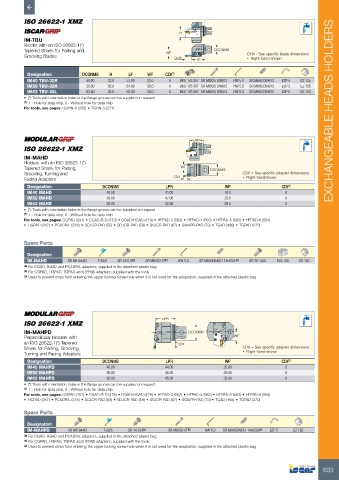

H
IM-TBU
Blocks with an ISO 26622-1(*)
Tapered Shank for Parting and WF DCONMS
Grooving Blades OHX LF OHX - See specific blade dimensions
• Right-hand shown

Designation DCONMS H LF WF CDI (1)
IM40 TBU-32R 40.00 32.0 51.00 23.0 0 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125
IM50 TBU-32R 50.00 32.0 61.00 30.0 0 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125
IM63 TBU-32L 63.00 32.0 63.00 38.0 0 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X6 DIN913 EZP 5 EZ 125
• (*) Tools with orientation holes in the flange groove can be supplied on request
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN-S (282) • TGHN-S (271) EXCHANGEABLE HEADS HOLDERS

LPR

IM-MAHD
Holders with an ISO 26622-1(*)
Tapered Shank for Parting, WF DCONMS
Grooving, Turning and CDX = See specific adapter dimensions
Facing Adapters CDX • Right-handshown
Designation DCONMS LPR WF CDI (1)
IM40 MAHD 40.00 43.00 18.0 0
IM50 MAHD 50.00 47.00 23.0 0
IM63 MAHD 63.00 52.00 29.0 0
• (*) Tools with orientation holes in the flange groove can be supplied on request
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)
• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts

Designation
IM-MAHD SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20-XT (b) HW 5.0 SR M6X6DIN551 14H/22H (c) SR 76-1022 EZA 125 EZ 125
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
(c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag

LPR
IM-MAHPD DCONMS
Perpendicular Holders with WF
an ISO 26622-1(*) Tapered CDX
Shank for Parting, Grooving, CDX = See specific adapter dimensions
Turning and Facing Adapters • Right-hand shown
Designation DCONMS LPR WF CDI (1)
IM40 MAHPD 40.00 44.00 25.00 0
IM50 MAHPD 50.00 45.00 26.00 0
IM63 MAHPD 63.00 45.00 33.00 0
• (*) Tools with orientation holes in the flange groove can be supplied on request
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)
• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)

Spare Parts
Designation
IM-MAHPD SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20-XT (b) HW 5.0 SR M6X6DIN551 14H/22H (c) EZP 5 EZ 125
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
(c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag

633
