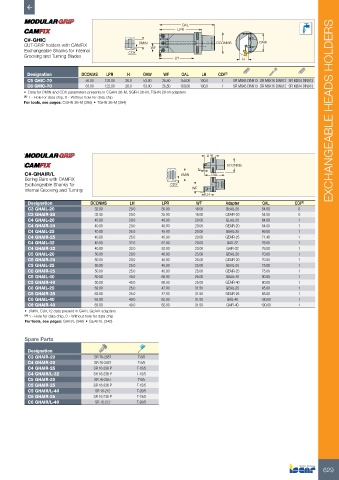

Page 631 - ISCAR(TURNING-CATALOG-42-2022)

OAL
LPR
C#-GHIC OAW
CUT-GRIP holders with CAMFIX DMIN WF DCONMS
Exchangeable Shanks for Internal CDX
Grooving and Turning Blades LH H

Designation DCONMS LPR H OAW WF OAL LH CDI (1)
C5 GHIC-70 50.00 120.00 26.0 53.00 26.50 150.00 100.0 1 SR M8X6 DIN913 SR M6X16 DIN912 SR M3X4 DIN913
C6 GHIC-70 63.00 122.00 26.0 53.00 26.50 160.00 100.0 1 SR M8X6 DIN913 SR M6X16 DIN912 SR M3X4 DIN913
• Data for DMIN and CDX parameters presents in CGHN 26-M, SGFH 26-M, TGHN 26-M adapters
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN 26-M (356) • TGHN 26-M (354)
EXCHANGEABLE HEADS HOLDERS

LPR
DCONMS

C#-GHAIR/L DMIN f2 OAL
Boring Bars with CAMFIX
Exchangeable Shanks for CDX
Internal Grooving and Turning WF
LH
Designation DCONMS LH LPR WF Adapter OAL CDI (1)
C3 GHAIL-20 32.00 20.0 35.00 16.00 GEAIL-20 54.00 0
C3 GHAIR-20 32.00 20.0 35.00 16.00 GEAIR-20 54.00 0
C4 GHAIL-20 40.00 20.0 40.00 20.00 GEAIL-20 64.00 1
C4 GHAIR-20 40.00 20.0 40.00 20.00 GEAIR-20 64.00 1
C4 GHAIL-25 40.00 25.0 45.00 20.00 GEAIL-25 69.00 1
C4 GHAIR-25 40.00 25.0 45.00 20.00 GEAIR-25 71.40 1
C4 GHAIL-32 40.00 32.0 52.00 20.00 GAIL-32 76.00 1
C4 GHAIR-32 40.00 32.0 52.00 20.00 GAIR-32 76.00 1
C5 GHAIL-20 50.00 20.0 40.00 25.00 GEAIL-20 70.00 1
C5 GHAIR-20 50.00 20.0 40.00 25.00 GEAIR-20 70.00 1
C5 GHAIL-25 50.00 25.0 45.00 25.00 GEAIL-25 75.00 1
C5 GHAIR-25 50.00 25.0 45.00 25.00 GEAIR-25 75.00 1
C5 GHAIL-40 50.00 40.0 60.00 25.00 GEAIL-40 90.00 1
C5 GHAIR-40 50.00 40.0 60.00 25.00 GEAIR-40 90.00 1
C6 GHAIL-25 63.00 25.0 47.00 31.50 GEAIL-25 85.00 1
C6 GHAIR-25 63.00 25.0 47.00 31.50 GEAIR-25 85.00 1
C6 GHAIL-40 63.00 40.0 62.00 31.50 GAIL-40 100.00 1
C6 GHAIR-40 63.00 40.0 62.00 31.50 GAIR-40 100.00 1
• DMIN, CDX, f2 data present in GAIR, GEAIR adapters
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: GAIR/L (346) • GEAIR/L (340)

Spare Parts
Designation
C3 GHAIR-20 SR 76-2057 T-8/5
C4 GHAIR-20 SR 76-2057 T-8/5
C4 GHAIR-25 SR 16-236 P T-15/5
C4 GHAIR/L-32 SR 16-236 P T-15/5
C5 GHAIR-20 SR 76-2057 T-8/5
C5 GHAIR-25 SR 16-236 P T-15/5
C5 GHAIR/L-40 SR 16-212 T-20/5
C6 GHAIR-25 SR 16-236 P T-15/5
C6 GHAIR/L-40 SR 16-212 T-20/5

629
