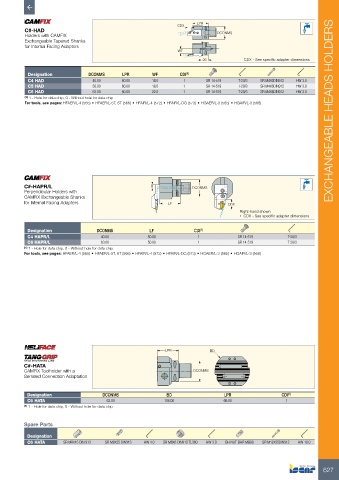

Page 629 - ISCAR(TURNING-CATALOG-42-2022)

LPR
C#-HAD CDX
Holders with CAMFIX DCONMS
Exchangeable Tapered Shanks
for Internal Facing Adapters
WF
26 CDX - See specific adapter dimensions

Designation DCONMS LPR WF CDI (1)
C4 HAD 40.00 60.00 18.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0
C5 HAD 50.00 60.00 18.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0
C6 HAD 63.00 60.00 22.0 1 SR 14-519 T-20/3 SR M4X6DIN912 HW 3.0
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAER/L-3 (565) • HGAIR/L-3 (568)
EXCHANGEABLE HEADS HOLDERS

C#-HAPR/L 8 DCONMS
Perpendicular Holders with
CAMFIX Exchangeable Shanks
for Internal Facing Adapters LF CDX
Right-hand shown
• CDX - See specific adapter dimensions

Designation DCONMS LF CDI (1)
C4 HAPR/L 40.00 50.00 1 SR 14-519 T-20/3
C6 HAPR/L 63.00 50.00 1 SR 14-519 T-20/3
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573) • HGAER/L-3 (565) • HGAIR/L-3 (568)

LPR BD

C#-HATA
CAMFIX Toolholder with a DCONMS
Serrated Connection Adaptation

Designation DCONMS BD LPR CDI (1)
C6 HATA 63.00 106.00 66.00 1
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
C6 HATA SR M8X45 DIN 913 SR M8X25 DIN913 HW 4.0 SR M6X6 DIN913 TL360 HW 3.0 BH NUT BHR MB80 SR M12X35DIN912 HW 10.0

627
