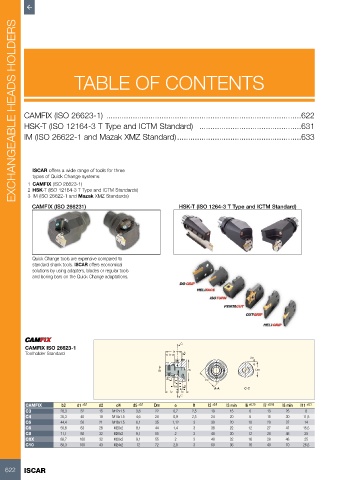

Page 624 - ISCAR(TURNING-CATALOG-42-2022)

EXCHANGEABLE HEADS HOLDERS

TABLE OF CONTENTS

CAMFIX (ISO 26623-1) ........................................................................................622

HSK-T (ISO 12164-3 T Type and ICTM Standard) ..............................................631
IM (ISO 26622-1 and Mazak XMZ Standard) ........................................................633

ISCAR offers a wide range of tools for three
types of Quick Change systems:
1 CAMFIX (ISO 26623-1)
2 HSK-T (ISO 12164-3 T Type and ICTM Standards)
3 IM (ISO 26622-1 and Mazak XMZ Standards)
CAMFIX (ISO 266231) HSK-T (ISO 1264-3 T Type and ICTM Standard)

Quick Change tools are expensive compared to
standard shank tools. ISCAR offers economical
solutions by using adapters, blades or regular tools
and boring bars on the Quick Change adaptations.

C
CAMFIX ISO 26623-1
Toolholder Standard l7 l8 A
2e
d4
d2 d1 Dm
d5 b2
l1
l11 A A-A C-C
l6
l2 l3
C
CAMFIX b2 d1 ±0.1 d2 d4 d5 ±0.1 Dm e l1 l2 ±0.1 l3 min l6 ±0.15 l7 ±0.15 l8 min l11 ±0.1
C3 28,3 32 15 M12x1.5 3,6 22 0,7 2,5 19 15 6 13 25 8
C4 35,3 40 18 M14x1.5 4,6 28 0,9 2,5 24 20 8 15 30 11,5
C5 44,4 50 21 M16x1.5 6,1 35 1,12 3 30 20 10 20 37 14
C6 55,8 63 28 M20x2 8,1 44 1,4 3 38 22 12 27 47 15,5
C8 71,1 80 32 M20x2 9,1 55 2 3 48 30 12 28 48 25
C8X 88,7 100 32 M20x2 9,1 55 2 3 48 32 16 28 48 25
C10 88,3 100 43 M24x2 12 72 2,8 3 60 36 16 40 70 26,5

622 ISCAR
