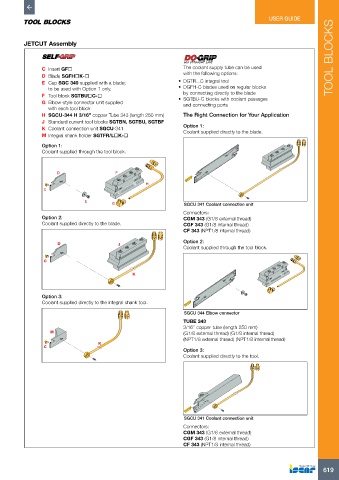

USER GUIDE




         JETCUT Assembly




                C Insert GF                                     The coolant supply tube can be used                  TOOL BLOCKS
                                                                 with the following options:
                D Blade SGFHK-
                E Cap SGC 340 supplied with a blade;            •  DGTR...C integral tool
                  to be used with Option 1 only.                •  DGFH-C blades used on regular blocks
                                                                 by connecting directly to the blade
                F Tool block SGTBUC-                          •  SGTBU-C blocks with coolant passages
                G Elbow-style connector unit supplied            and connecting ports
                  with each tool block
                H SGCU-344 H 3/16” copper Tube 343 (length 250 mm)  The Right Connection for Your Application
                J Standard current tool blocks SGTBN, SGTBU, SGTBF
                K Coolant connection unit SGCU-341               Option 1:
                                                                 Coolant supplied directly to the blade.
                M Integral shank holder SGTFR/LK-
                Option 1:
                Coolant supplied through the tool block.


                     D                    F

                                                    H
                C

                               E
                                        G                         SGCU 341 Coolant connection unit
                                                                 Connectors:
                Option 2:                                        CGM 343 (G1/8 external thread)
                Coolant supplied directly to the blade.          CGF 343 (G1/8 internal thread)
                                                                 CF 343 (NPT1/8 internal thread)
                                                                 Option 2:
                     D                    J
                                                                 Coolant supplied through the tool block.

                C

                                                K


                Option 3:
                Coolant supplied directly to the integral shank tool.
                                                                  SGCU 344 Elbow connector
                                                                 TUBE 343
                                                                 3/16” copper tube (length 250 mm)
                   M                                             (G1/8 external thread) (G1/8 internal thread)
                                                                 (NPT1/8 external thread) (NPT1/8 internal thread)
                                    K
                C
                                                                 Option 3:
                                                                 Coolant supplied directly to the tool.











                                                                  SGCU 341 Coolant connection unit
                                                                 Connectors:
                                                                 CGM 343 (G1/8 external thread)
                                                                 CGF 343 (G1/8 internal thread)
                                                                 CF 343 (NPT1/8 internal thread)
