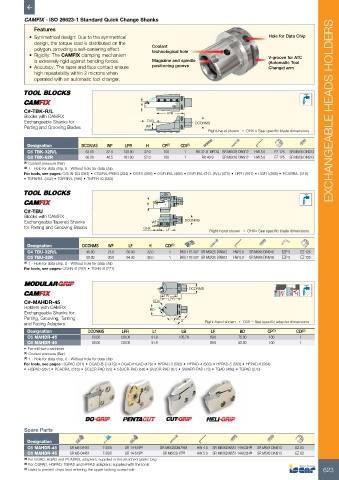

Page 625 - ISCAR(TURNING-CATALOG-42-2022)
P. 625
CAMFIX - ISO 26623-1 Standard Quick Change Shanks
Features
• Symmetrical design: Due to the symmetrical Hole for Data Chip
design, the torque load is distributed on the
polygon, providing a self-centering effect. Coolant
• Rigidity: The CAMFIX clamping mechanism technological hole V-groove for ATC
is extremely rigid against bending forces. Magazine and spindle (Automatic Tool
• Accuracy: The taper and face contact ensure positioning groove Change) arm
high repeatability within 2 microns when
operated with an automatic tool changer.
H
C#-TBK-R/L LPR EXCHANGEABLE HEADS HOLDERS
Blocks with CAMFIX
Exchangeable Shanks for OHX DCONMS
Parting and Grooving Blades WF
Right-hand shown • OHX = See specific blade dimensions
Designation DCONMS WF LPR H CP (1) CDI (2)
C6 TBK-32R/L 63.00 32.0 138.00 32.0 100 1 BK 32-9 WEDG SR M6X16 DIN912 HW 5.0 EZ 125 SR M8X6 DIN913
C8 TBK-52R 80.00 40.5 161.00 52.0 100 1 BK 40-9 SR M6X16 DIN912 HW 5.0 EZ 125 SR M8X6 DIN913
(1) Coolant pressure (Bar)
(2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN-DG (283) • CGHR/L-P8DG (284) • DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFH (557) • HGFH (268) • PCHBR/L (318)
• TGFH/R/L (332) • TGFHR/L (495) • TNFFH-IQ (583)
H
C#-TBU
Blocks with CAMFIX
Exchangeable Tapered Shanks WF DCONMS
for Parting and Grooving Blades OHX LF Right-hand shown • OHX= See specific blade dimensions
Designation DCONMS WF LF H CDI (1)
C4 TBU-32R/L 40.00 21.0 60.00 32.0 1 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X8 DIN916 EZP 5 EZ 125
C5 TBU-32R 50.00 30.0 64.00 32.0 1 BKU 176 307 SR M6X25 DIN912 HW 5.0 SR M6X8 DIN916 EZP 5 EZ 125
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN-S (282) • TGHN-S (271)
LB DCONMS 45° 45 º
C#-MAHDR-45 CDX LPR
Holders with CAMFIX BD
Exchangeable Shanks for
Parting, Grooving, Turning L1 45° LF
and Facing Adapters Right-hand shown • CDX = See specific adapter dimensions
Designation DCONMS LPR L1 LB LF BD CP (1) CDI (2)
C6 MAHDR-45 63.00 130.00 91.9 105.78 89.0 75.00 100 1
C8 MAHDR-45 80.00 130.00 91.9 - 89.0 80.00 100 1
• For mill-turn machines
(1) Coolant pressure (Bar)
(2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)
• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)
Spare Parts
Designation
C6 MAHDR-45 SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20DIN7984 HW 4.0 SR M6X6DIN551 14H/22H (c) SR M5X4 DIN913 EZ 83
C8 MAHDR-45 SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20-XT (b) HW 5.0 SR M6X6DIN551 14H/22H (c) SR M5X6 DIN913 EZ 83
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
623
(c) Used to prevent chips from entering the upper locking screw hole
