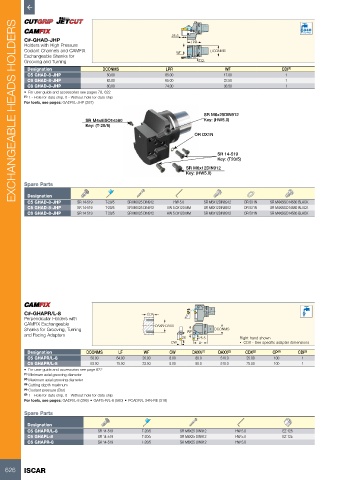

EXCHANGEABLE HEADS HOLDERS
Bar Max
C#-GHAD-JHP 25.5 LPR
Holders with High Pressure
Coolant Channels and CAMFIX WF DCONMS
Exchangeable Shanks for
Grooving and Turning 7.0
Designation DCONMS LPR WF CDI (1)
C5 GHAD-8-JHP 50.00 65.00 17.00 1
C6 GHAD-8-JHP 63.00 65.00 23.50 1
C8 GHAD-8-JHP 80.00 74.00 38.50 1
• For user guide and accessories see pages 78, 622
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: GADR/L-JHP (287)
SR M6x25DIN912
SR M4x8ISO14580 Key: (HW5.0)
Key: (T-20/5)
OR DX1N

SR 14-519
Key: (T20/5)
SR M6x12DIN912
Key: (HW5.0)

Spare Parts
Designation
C5 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK
C6 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK
C8 GHAD-8-JHP SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0X120 MM SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK

C#-GHAPR/L-8 CDX
Perpendicular Holders with
CAMFIX Exchangeable DAXN-DAXX
Shanks for Grooving, Turning WF DCONMS
and Facing Adapters
26 25.5 Right-hand shown
CW LF • CDX - See specific adapter dimensions
Designation DCONMS LF WF CW DAXN (1) DAXX (2) CDX (3) CP (4) CDI (5)
C5 GHAPR/L-8 50.00 64.00 26.00 8.00 80.0 510.0 25.00 100 1
C6 GHAPR/L-8 63.00 75.00 33.00 8.00 80.0 510.0 25.00 100 1
• For user guide and accessories see page 622
(1) Minimum axial grooving diameter
(2) Maximum axial grooving diameter
(3) Cutting depth maximum
(4) Coolant pressure (Bar)
(5) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: GADR/L-8 (286) • GAFG-R/L-8 (580) • PCADR/L 34N-RE (318)

Spare Parts
Designation
C5 GHAPR/L-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 EZ 125
C6 GHAPL-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 EZ 125
C6 GHAPR-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0
