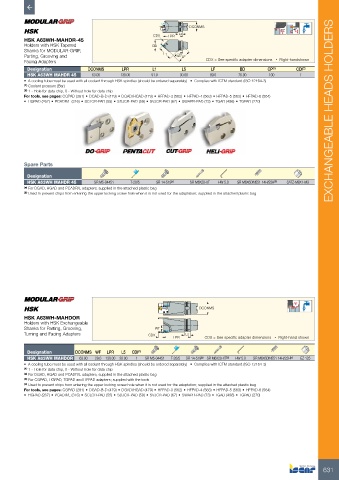

P. 633

L5  DCONMS                          45°  45 º
         HSK A63WH-MAHDR-45                            CDX  LPR
         Holders with HSK Tapered                      BD
         Shanks for MODULAR-GRIP,
         Parting, Grooving and                            L1   45° LF
         Facing Adapters                                                 CDX = See specific adapter dimensions   •  Right-handshown
           Designation          DCONMS      LPR        L1        L5        LF        BD        CP (1)    CDI (2)
           HSK A63WH MAHDR 45    63.00     130.00     91.9      30.00      89.0      75.00     100        1
         •  A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)   •  Complies with ICTM standard (ISO 12164-3)
         (1)  Coolant pressure (Bar)
         (2)  1 - Hole for data chip, 0 - Without hole for data chip
         For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)
         •  HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)   EXCHANGEABLE HEADS HOLDERS











         Spare Parts

           Designation
           HSK A63WH MAHDR 45     SR M5-04451  T-20/5   SR 14-519 (a)  SR M6X20-XT  HW 5.0  SR M6X6DIN551 14H/22H (b)  SATZ-M8X1-M3
         (a)  For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
         (b)  Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag





















                                                                       DCONMS

         HSK A63WH-MAHDOR
         Holders with HSK Exchangeable
         Shanks for Parting, Grooving,                 WF
         Turning and Facing Adapters                 CDX          L5
                                                              LPR        CDX = See specific adapter dimensions   •  Right-hand shown

           Designation     DCONMS WF   LPR  L5  CDI (1)
           HSK A63WH MAHDOR  63.00  29.0  130.00  30.00  1  SR M5-04451  T-20/5  SR 14-519 (a)  SR M6X20-XT (b)  HW 5.0  SR M6X6DIN551 14H/22H (c)  EZ 125
         •  A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)   •  Complies with ICTM standard (ISO 12164-3)
         (1)  1 - Hole for data chip, 0 - Without hole for data chip
         (a)  For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
         (b)  For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
         (c)  Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
         For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)
         •  HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)
