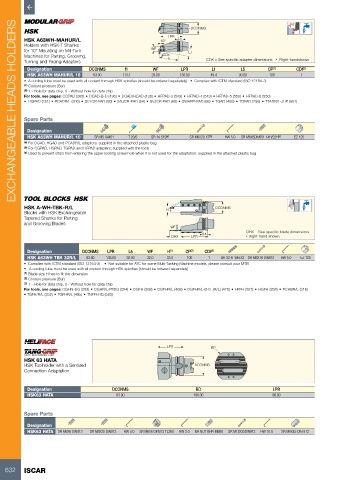

Page 634 - ISCAR(TURNING-CATALOG-42-2022)

10°
EXCHANGEABLE HEADS HOLDERS
DCONMS
HSK A63WH-MAHUR/L 10° LPR L5
Holders with HSK-T Shanks
for 10° Mounting on Mill-Turn WF L1
Machines for Parting, Grooving, CDX f1
Turning and Facing Adapters CDX = See specific adapter dimensions • Right-handshown
Designation DCONMS f1 WF LPR L1 L5 CP (1) CDI (2)
HSK A63WH MAHUR/L 10 63.00 113.1 29.00 130.00 49.4 30.00 100 1
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • Complies with ICTM standard (ISO 12164-3)
(1) Coolant pressure (Bar)
(2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (265) • DGAD-B-D (436) • DGAD/HGAD (436) • HFPAD-3 (549) • HFPAD-4 (549) • HFPAD-5 (550) • HFPAD-6 (550)
• HGPAD (251) • PCADR/L (300) • SCLCR-PAD (50) • SDJCR-PAD (54) • SVJCR-PAD (60) • SWAPR-PAD (66) • TGAD (455) • TGPAD (256) • TTADR/L-JHP (651)

Spare Parts

Designation
HSK A63WH MAHUR/L 10 SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20-XT (b) HW 5.0 SR M6X6DIN551 14H/22H (c) EZ 125
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
(c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag

HSK A-WH-TBK-R/L H DCONMS
Blocks with HSK Exchangeable
Tapered Shanks for Parting
and Grooving Blades
WF
OHX = See specific blade dimensions
L5
OHX LPR • Right-hand shown
Designation DCONMS LPR L5 WF H (1) CP (2) CDI (3)
HSK A63WH TBK 32R/L 63.00 138.00 30.00 32.0 32.0 100 1 BK 32-9 WEDG SR M6X16 DIN912 HW 5.0 EZ 125
• Complies with ICTM standard (ISO 12164-3) • Not suitable for ATC for some Multi-Tasking Machine models, please consult your MTB
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
(1) Blade size H has to fit this dimension
(2) Coolant pressure (Bar)
(3) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGHN-DG (283) • CGHR/L-P8DG (284) • DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HFFH (557) • HGFH (268) • PCHBR/L (318)
• TGFH/R/L (332) • TGFHR/L (495) • TNFFH-IQ (583)

LPR BD
HSK 63 HATA
HSK Toolholder with a Serrated DCONMS
Connection Adaptation

Designation DCONMS BD LPR
HSK63 HATA 63.00 106.00 86.00

Spare Parts

Designation
HSK63 HATA SR M6X6 DIN913 SR M8X25 DIN913 HW 4.0 SR M6X6 DIN913 TL360 HW 3.0 BH NUT BHR MB80 SR M12X35DIN912 HW 10.0 SR M8X45 DIN 913
