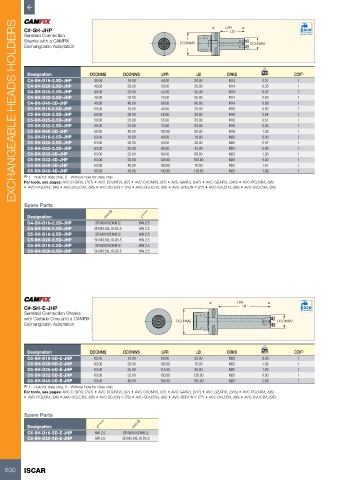

Page 632 - ISCAR(TURNING-CATALOG-42-2022)

EXCHANGEABLE HEADS HOLDERS
C#-SH-JHP LPR LB
Serrated Connection Bar Max
Shanks with a CAMFIX DCONMS
Exchangeable Adaptation DCONWS

Designation DCONMS DCONWS LPR LB CRKS kg CDI (1)
C4-SH-D16-2.5D-JHP 40.00 16.00 40.00 20.00 M14 0.31 1
C4-SH-D20-2.5D-JHP 40.00 20.00 50.00 30.00 M14 0.35 1
C4-SH-D25-2.5D-JHP 40.00 25.00 55.00 35.00 M14 0.41 1
C4-SH-D32-2.5D-JHP 40.00 32.00 75.00 55.00 M14 0.63 1
C4-SH-D40-3D-JHP 40.00 40.00 80.00 80.00 M14 0.88 1
C5-SH-D16-2.5D-JHP 50.00 16.00 40.00 20.00 M16 0.50 1
C5-SH-D20-2.5D-JHP 50.00 20.00 50.00 30.00 M16 0.54 1
C5-SH-D25-2.5D-JHP 50.00 25.00 55.00 35.00 M16 0.61 1
C5-SH-D32-2.5D-JHP 50.00 32.00 75.00 55.00 M16 0.00 1
C5-SH-D40-3D-JHP 50.00 40.00 100.00 80.00 M16 1.26 1
C6-SH-D16-2.5D-JHP 63.00 16.00 40.00 18.00 M20 0.83 1
C6-SH-D20-2.5D-JHP 63.00 20.00 50.00 28.00 M20 0.87 1
C6-SH-D25-2.5D-JHP 63.00 25.00 65.00 43.00 M20 0.00 1
C6-SH-D32-3D-JHP 63.00 32.00 90.00 68.00 M20 1.26 1
C6-SH-D32-4D-JHP 63.00 32.00 125.00 103.00 M20 0.00 1
C6-SH-D40-3D-JHP 63.00 40.00 100.00 78.00 M20 1.61 1
C6-SH-D40-4D-JHP 63.00 40.00 140.00 118.00 M20 1.99 1
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: AVC-D-SIR/L (707) • AVC-DDUNR/L (97) • AVC-DVUNR/L (97) • AVC-GAIR/L (347) • AVC-GEAIR/L (346) • AVC-PCLNR/L (96)
• AVC-PCLXR/L (96) • AVC-SCLCR/L (95) • AVC-SDJCN-Y (76) • AVC-SDUCR/L (95) • AVC-SRDCN-Y (77) • AVC-SVLCR/L (96) • AVC-SVUCR/L (95)

Spare Parts

Designation
C4-SH-D16-2.5D-JHP SR M3X10DIN912 HW 2.5
C4-SH-D20-2.5D-JHP SR M3.5XL10-D5.5 HW 2.5
C5-SH-D16-2.5D-JHP SR M3X10DIN912 HW 2.5
C5-SH-D20-2.5D-JHP SR M3.5XL10-D5.5 HW 2.5
C6-SH-D16-2.5D-JHP SR M3X10DIN912 HW 2.5
C6-SH-D20-2.5D-JHP SR M3.5XL10-D5.5 HW 2.5

LPR

C#-SH-E-JHP LB
Serrated Connection Shanks Bar Max
with Carbide Core and a CAMFIX DCONMS DCONWS
Exchangeable Adaptation

Designation DCONMS DCONWS LPR LB CRKS kg CDI (1)
C6-SH-D16-5D-E-JHP 63.00 16.00 80.00 58.00 M20 0.93 1
C6-SH-D20-5D-E-JHP 63.00 20.00 100.00 78.00 M20 1.06 1
C6-SH-D25-5D-E-JHP 63.00 25.00 115.00 93.00 M20 1.29 1
C6-SH-D32-5D-E-JHP 63.00 32.00 150.00 128.00 M20 0.00 1
C6-SH-D40-5D-E-JHP 63.00 40.00 185.00 163.00 M20 2.68 1
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: AVC-D-SIR/L (707) • AVC-DDUNR/L (97) • AVC-DVUNR/L (97) • AVC-GAIR/L (347) • AVC-GEAIR/L (346) • AVC-PCLNR/L (96)
• AVC-PCLXR/L (96) • AVC-SCLCR/L (95) • AVC-SDJCN-Y (76) • AVC-SDUCR/L (95) • AVC-SRDCN-Y (77) • AVC-SVLCR/L (96) • AVC-SVUCR/L (95)

Spare Parts

Designation
C6-SH-D16-5D-E-JHP HW 2.5 SR M3X10DIN912
C6-SH-D20-5D-E-JHP HW 2.5 SR M3.5XL10-D5.5
