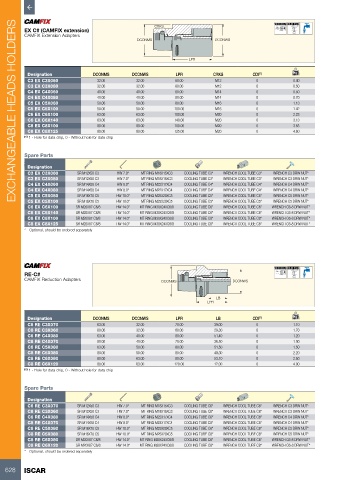

Page 630 - ISCAR(TURNING-CATALOG-42-2022)

A 0.003 A 58-60 HRc
EXCHANGEABLE HEADS HOLDERS
EX C# (CAMFIX extension) CRKS
CAMFIX Extension Adapters
DCONMS DCONWS

LPR

Designation DCONMS DCONWS LPR CRKS CDI (1) kg
C3 EX C3X060 32.00 32.00 60.00 M12 0 0.40
C3 EX C3X080 32.00 32.00 80.00 M12 0 0.50
C4 EX C4X060 40.00 40.00 60.00 M14 0 0.50
C4 EX C4X080 40.00 40.00 80.00 M14 0 0.70
C5 EX C5X080 50.00 50.00 80.00 M16 0 1.13
C5 EX C5X100 50.00 50.00 100.00 M16 0 1.42
C6 EX C6X100 63.00 63.00 100.00 M20 0 2.23
C6 EX C6X140 63.00 63.00 140.00 M20 0 3.13
C8 EX C8X100 80.00 80.00 100.00 M20 0 3.65
C8 EX C8X125 80.00 80.00 125.00 M20 0 4.60
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
C3 EX C3X060 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C3* WRENCH COOL TUBE C3* WRENCH C3 DRW NUT*
C3 EX C3X080 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C3* WRENCH COOL TUBE C3* WRENCH C3 DRW NUT*
C4 EX C4X060 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C4* WRENCH COOL TUBE C4* WRENCH C4 DRW NUT*
C4 EX C4X080 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C4* WRENCH COOL TUBE C4* WRENCH C4 DRW NUT*
C5 EX C5X080 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH C5 DRW NUT*
C5 EX C5X100 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH C5 DRW NUT*
C6 EX C6X100 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C6-8 DRW NUT*
C6 EX C6X140 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C6-8 DRW NUT*
C8 EX C8X100 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*
C8 EX C8X125 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*
* Optional, should be ordered separately

A 0.003 A 58-60 HRc
RE-C#
CAMFIX Reduction Adapters DCONMS DCONWS

LB
LPR

Designation DCONMS DCONWS LPR LB CDI (1) kg
C6 RE C3X070 63.00 32.00 70.00 39.00 0 1.10
C8 RE C3X060 80.00 32.00 60.00 29.30 0 1.70
C6 RE C4X080 63.00 40.00 80.00 51.40 0 1.20
C8 RE C4X070 80.00 40.00 70.00 36.50 0 1.90
C6 RE C5X080 63.00 50.00 80.00 51.50 0 1.50
C8 RE C5X080 80.00 50.00 80.00 49.30 0 2.20
C8 RE C6X080 80.00 63.00 80.00 53.10 0 2.50
C8 RE C6X120 80.00 63.00 120.00 12.00 0 4.00
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
C6 RE C3X070 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C3 DRW NUT*
C8 RE C3X060 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C3 DRW NUT*
C6 RE C4X080 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C4 DRW NUT*
C8 RE C4X070 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C4 DRW NUT*
C6 RE C5X080 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C5 DRW NUT*
C8 RE C5X080 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C5 DRW NUT*
C8 RE C6X080 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*
C8 RE C6X120 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*
* Optional, should be ordered separately
