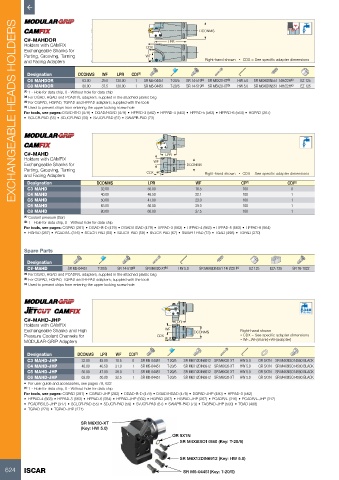

Page 626 - ISCAR(TURNING-CATALOG-42-2022)
P. 626
EXCHANGEABLE HEADS HOLDERS
DCONMS
C#-MAHDOR LPR
Holders with CAMFIX CDX
Exchangeable Shanks for
Parting, Grooving, Turning WF
and Facing Adapters Right-hand shown • CDX = See specific adapter dimensions
Designation DCONMS WF LPR CDI (1)
C6 MAHDOR 63.00 29.0 130.00 1 SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20-XT (b) HW 5.0 SR M6X6DIN551 14H/22H (c) EZ 125
C8 MAHDOR 80.00 37.5 130.00 1 SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20-XT (b) HW 5.0 SR M6X6DIN551 14H/22H (c) EZ 125
(1) 1 - Hole for data chip, 0 - Without hole for data chip
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
(c) Used to prevent chips from entering the upper locking screw hole
For tools, see pages: DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HGPAD (267)
• SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73)
C#-MAHD LPR
Holders with CAMFIX WF
Exchangeable Shanks for DCONMS
Parting, Grooving, Turning CDX
and Facing Adapters Right-hand shown • CDX = See specific adapter dimensions
Designation DCONMS LPR WF CP (1) CDI (2)
C3 MAHD 32.00 50.00 18.5 100 0
C4 MAHD 40.00 46.50 22.1 100 1
C5 MAHD 50.00 47.00 23.0 100 1
C6 MAHD 63.00 50.00 29.0 100 1
C8 MAHD 80.00 60.00 37.5 100 1
(1) Coolant pressure (Bar)
(2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)
• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270)
Spare Parts
Designation
C#-MAHD SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20-XT (b) HW 5.0 SR M6X6DIN551 14H/22H (c) EZ 125 EZA 125 SR 76-1022
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
(c) Used to prevent chips from entering the upper locking screw hole
Bar Max
C#-MAHD-JHP LPR
Holders with CAMFIX
Exchangeable Shanks and High WF DCONMS Right-hand shown
Pressure Coolant Channels for CDX • CDX = See specific adapter dimensions
MODULAR-GRIP Adapters • WF=WF(shank)+WF(adapter)
Designation DCONMS LPR WF CDI (1)
C3 MAHD-JHP 32.00 45.00 18.5 0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK
C4 MAHD-JHP 40.00 46.50 21.0 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK
C5 MAHD-JHP 50.00 47.00 26.0 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK
C6 MAHD-JHP 63.00 50.00 32.5 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK
• For user guide and accessories, see pages 78, 622
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) • CGPAD-JHP (282) • DGAD-B-D (479) • DGAD/HGAD (479) • DGPAD-JHP (480) • HFPAD-3 (562)
• HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • PCADR/L (316) • PCADR/L-JHP (317)
• PCADRS/LS-JHP (317) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TAGPAD-JHP (500) • TGAD (498)
• TGPAD (270) • TGPAD-JHP (271)
SR M6X20-XT
(Key: HW 5.0)
OR 5X1N
SR M4X8ISO14580 (Key: T-20/5)
SR M6X12DIN6912 (Key: HW 5.0)
624 ISCAR SR M5-04451(Key: T-20/5)
