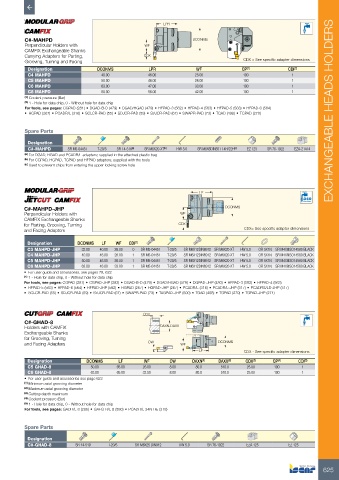

Page 627 - ISCAR(TURNING-CATALOG-42-2022)

LPR

C#-MAHPD DCONMS
Perpendicular Holders with WF
CAMFIX Exchangeable Shanks
Carrying Adapters for Parting, CDX
Grooving, Turning and Facing CDX = See specific adapter dimensions
Designation DCONMS LPR WF CP (1) CDI (2)
C4 MAHPD 40.00 46.00 25.00 100 1
C5 MAHPD 50.00 46.00 26.00 100 1
C6 MAHPD 63.00 47.00 33.00 100 1
C8 MAHPD 80.00 56.00 42.00 100 1
(1) Coolant pressure (Bar)
(2) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) • DGAD-B-D (479) • DGAD/HGAD (479) • HFPAD-3 (562) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564)
• HGPAD (267) • PCADR/L (316) • SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TGAD (498) • TGPAD (270) EXCHANGEABLE HEADS HOLDERS

Spare Parts

Designation
C#-MAHPD SR M5-04451 T-20/5 SR 14-519 (a) SR M6X20-XT (b) HW 5.0 SR M6X6DIN551 14H/22H (c) EZ 125 SR 76-1022 EZA-21414
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag
(b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools
(c) Used to prevent chips from entering the upper locking screw hole

LF

Bar Max
C#-MAHPD-JHP DCONMS
Perpendicular Holders with WF
CAMFIX Exchangeable Shanks
for Parting, Grooving, Turning CDX
and Facing Adapters CDX= See specific adapter dimensions

Designation DCONMS LF WF CDI (1)
C3 MAHPD-JHP 32.00 40.00 26.00 0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK
C4 MAHPD-JHP 40.00 46.00 26.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK
C5 MAHPD-JHP 50.00 46.00 26.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK
C6 MAHPD-JHP 63.00 46.00 33.00 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK
• For user guide and accessories, see pages 78, 622
(1) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: CGPAD (281) • CGPAD-JHP (282) • DGAD-B-D (479) • DGAD/HGAD (479) • DGPAD-JHP (480) • HFPAD-3 (562) • HFPAD-4 (563)
• HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • PCADR/L (316) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317)
• SCLCR-PAD (55) • SDJCR-PAD (59) • SVJCR-PAD (67) • SWAPR-PAD (73) • TAGPAD-JHP (500) • TGAD (498) • TGPAD (270) • TGPAD-JHP (271)

CDX
C#-GHAD-8
Holders with CAMFIX DAXN-DAXX
Exchangeable Shanks
for Grooving, Turning
and Facing Adapters CW WF DCONMS
LF CDX - See specific adapter dimensions
Designation DCONMS LF WF CW DAXN (1) DAXX (2) CDX (3) CP (4) CDI (5)
C5 GHAD-8 50.00 65.00 26.00 8.00 80.0 510.0 25.00 100 1
C6 GHAD-8 63.00 65.00 32.50 8.00 80.0 510.0 25.00 100 1
• For user guide and accessories see page 622
(1) Minimum axial grooving diameter
(2) Maximum axial grooving diameter
(3) Cutting depth maximum
(4) Coolant pressure (Bar)
(5) 1 - Hole for data chip, 0 - Without hole for data chip
For tools, see pages: GADR/L-8 (286) • GAFG-R/L-8 (580) • PCADR/L 34N-RE (318)

Spare Parts

Designation
C#-GHAD-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 SR 76-1022 EZA 125 EZ 125

625
