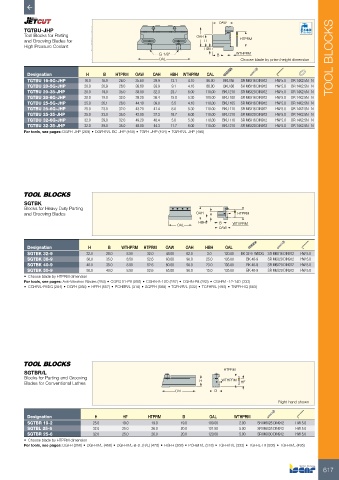

Page 619 - ISCAR(TURNING-CATALOG-42-2022)

OAW
TGTBU-JHP
Tool Blocks for Parting OAH Bar Max
and Grooving Blades for H HTPRM
High Pressure Coolant
HBH
G 1/8" B WTHPRM
OAL Choose blade by prism height dimension TOOL BLOCKS

Designation H B HTPRM OAW OAH HBH WTHPRM OAL
TGTBU 16-5G-JHP 16.0 16.9 26.0 35.60 29.9 13.1 4.10 86.00 BKU 86 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N
TGTBU 20-5G-JHP 20.0 20.9 26.0 39.60 33.9 9.1 4.10 86.00 BKU 86 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N
TGTBU 20-35-JHP 20.0 19.0 35.0 38.00 32.3 23.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N
TGTBU 20-6G-JHP 20.0 19.0 32.0 39.20 36.4 15.0 5.30 100.00 BKU 100 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N
TGTBU 25-5G-JHP 25.0 26.1 26.0 44.10 39.0 5.5 4.10 110.00 BKU 105 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N
TGTBU 25-6G-JHP 25.0 23.0 32.0 43.20 41.4 8.0 5.30 110.00 BKU 110 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N
TGTBU 25-35-JHP 25.0 23.0 35.0 42.00 37.3 18.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N
TGTBU 32-6G-JHP 32.0 29.0 32.0 49.20 48.4 5.0 5.30 110.00 BKU 110 SR M6X16 DIN912 HW 5.0 OR 14X2.5N N
TGTBU 32-35-JHP 32.0 29.0 35.0 48.00 44.3 11.7 6.00 110.00 BKU 210 SR M6X20 DIN912 HW 5.0 OR 14X2.5N N
For tools, see pages: DGFH-JHP (269) • DGFHR/L-BC-JHP (469) • TGFH-JHP (494) • TGFHR/L-JHP (495)

SGTBK
Blocks for Heavy Duty Parting
and Grooving Blades OAH H HTPRM
HBH B WTHPRM
OAL
OAW

Designation H B WTHPRM HTPRM OAW OAH HBH OAL
SGTBK 32-9 32.0 28.0 8.50 32.0 48.00 62.0 3.0 120.00 BK 32-9 WEDG SR M6X16 DIN912 HW 5.0
SGTBK 38-9 38.0 35.0 8.50 52.6 60.00 90.0 25.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0
SGTBK 40-9 40.0 35.0 8.50 52.6 60.00 90.0 23.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0
SGTBK 50-9 50.0 40.0 8.50 52.6 65.00 90.0 15.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0
• Choose blade by HTPRM dimension
For tools, see pages: Anti-Vibration Blades (284) • CGFG 51-P8 (580) • CGHN-8-10D (287) • CGHN-P8 (283) • CGHR/L-12-14D (333)
• CGHR/L-P8DG (284) • DGFH (268) • HFFH (557) • PCHBR/L (318) • SGFFH (588) • TGFH/R/L (332) • TGFHR/L (495) • TNFFH-IQ (583)

SGTBR/L HTPRM
Blocks for Parting and Grooving WTHPRM
Blades for Conventional Lathes H HF
OAL B

Right-hand shown

Designation H HF HTPRM B OAL WTHPRM
SGTBR 19-2 25.0 19.0 19.0 19.0 100.00 2.00 SR M6X25 DIN912 HW 5.0
SGTBL 25-6 32.0 25.0 26.0 20.0 121.50 5.00 SR M6X25 DIN912 HW 5.0
SGTBR 25-6 32.0 25.0 26.0 20.0 120.00 5.00 SR M6X30 DIN912 HW 5.0
• Choose blade by HTPRM dimension
For tools, see pages: DGFH (268) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • HGFH (268) • PCHBR/L (318) • TGFH/R/L (332) • TGFHL-TR (505) • TGFHR/L (495)

617
