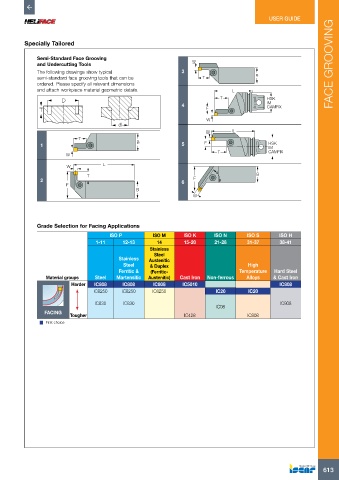

USER GUIDE




          Specially Tailored

              Semi-Standard Face Grooving
              and Undercutting Tools                                 W                                                FACE GROOVING
              The following drawings show typical                3
              semi-standard face grooving tools that can be             T                  B
              ordered. Please specify all relevant dimensions
              and attach workpiece material geometric details.                     L
                                           D
                       D                                                      T                HSK
                                                                 4                             IM
               T                                                         F                     CAMFIX

                                                                          W
                                           d
                                                                         W         L
                             T
               1                                 B               5       F                     HSK
                                                                                               IM
                                                                             T                 CAMFIX
                        W
                        W            L
                                                                             a
                                T                                                          B
               2                                                 6   F
                        F
                                                 B
                                                                     W





              Grade Selection for Facing Applications
                                        ISO P          ISO M      ISO K     ISO N       ISO S      ISO H
                                   1-11     12-13       14        15-20     21-28       31-37      38-41
                                                      Stainless
                                                       Steel
                                           Stainless   Austenitic
                                            Steel     & Duplex                          High
                                           Ferritic &   (Ferritic-                   Temperature   Hard Steel
                 Material groups  Steel   Martensitic  Austenitic)  Cast Iron  Non-ferrous  Alloys  & Cast Iron
                          Harder  IC808     IC808      IC808     IC5010                            IC808
                                  IC8250    IC8250     IC8250                IC20       IC20

                                  IC830     IC830                                                  IC908
                                                                             IC08
                 FACING
                          Tougher                                 IC428                 IC808
                 First choice
