USER GUIDE

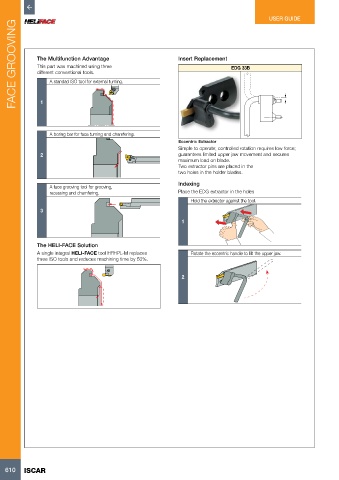

      FACE GROOVING  The Multifunction Advantage                Insert Replacement  EDG 33B








              This part was machined using three
              different conventional tools.
                  A standad ISO tool for external turning.



               1





                  A boring bar for face turning and chamfering.
                                                                Eccentric Extractor
                                                                Simple to operate; controlled rotation requires low force;
               2                                                guarantees limited upper jaw movement and secures
                                                                maximum load on blade.
                                                                Two extractor pins are placed in the
                                                                two holes in the holder blades.

                                                                Indexing
                  A face grooving tool for grooving,
                  recessing and chamfering.                     Place the EDG extractor in the holes
                                                                    Hold the extractor against the tool.

               3
                                                                 1



              The HELI-FACE Solution
              A single integral HELI-FACE tool HFHPL-M replaces     Rotate the eccentric handle to lift the upper jaw.
              three ISO tools and reduces machining time by 50%.


                                                                 2
