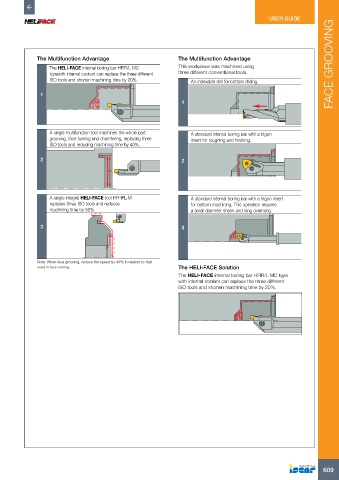

                                                                                                                      FACE GROOVING






              The Multifunction Advantage                       The Multifunction Advantage
                  The HELI-FACE internal boring bar HFIR/L MC   This workpiece was machined using
                  typewith internal coolant can replace the three different   three different conventional tools.
                  ISO tools and shorten machining time by 20%.      An indexable drill for bottom drilling.

               1
                                                                 1




                  A single multifunction tool machines the whole part:   A standard internal boring bar with a trigon
                  grooving, face turning and chamfering, replacing three   insert for roughing and finishing.
                  ISO tools and reducing machining time by 40%.

               2                                                 2







                  A single integral HELI-FACE tool HFHPL-M          A standard internal boring bar with a trigon insert
                  replaces three ISO tools and reduces              for bottom machining. This operation requires
                  machining time by 50%.                            a small diameter shank and long overhang.


               3                                                 3






              Note: When face grooving, reduce the speed by 40% in relation to that
              used in face turning.                             The HELI-FACE Solution
                                                                The HELI-FACE internal boring bar HFIR/L MC type
                                                                with internal coolant can replace the three different
                                                                ISO tools and shorten machining time by 20%.
