USER GUIDE

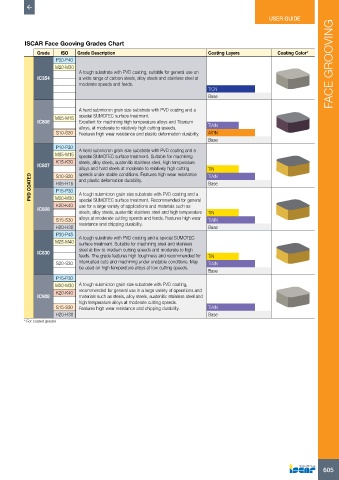

          ISCAR Face Gooving Grades Chart
              Grade   ISO   Grade Description                             Coating Layers          Coating Color*
                     P20-P40
                    M20-M30                                                                                           FACE GROOVING
                             A tough substrate with PVD coating, suitable for general use on
              IC354          a wide range of carbon steels, alloy steels and stainless steel at
                             moderate speeds and feeds.
                                                                          TiCN
                                                                          Base

                             A hard submicron grain size substrate with PVD coating and a
                    M05-M15  special SUMOTEC surface treatment.
              IC806          Excellent for machining high temperature alloys and Titanium
                             alloys, at moderate to relatively high cutting speeds.    TiAlN
                     S10-S20  Features high wear resistance and plastic deformation durability.   AlTiN
                                                                          Base
                     P10-P20  A hard submicron grain size substrate with PVD coating and a
                    M05-M15  special SUMOTEC surface treatment. Suitable for machining
                     K15-K30  steels, alloy steels, austenitic stainless steel, high temperature
              IC807
                             alloys and hard steels at moderate to relatively high cutting   TiN
                             speeds under stable conditions. Features high wear resistance
                                                                          TiAlN
            PVD COATED  H05-H15  and plastic deformation durability.      Base
                     S10-S20
                     P15-P30
                             A tough submicron grain size substrate with PVD coating and a
                    M20-M30
                     K20-K40  special SUMOTEC surface treatment. Recommended for general
                             use for a large variety of applications and materials such as
              IC808
                             steels, alloy steels, austenitic stainless steel and high temperature   TiN
                     S15-S30  alloys at moderate cutting speeds and feeds. Features high wear   TiAIN
                     H20-H30  resistance and chipping durability.         Base
                     P30-P45  A tough substrate with PVD coating and a special SUMOTEC
                    M25-M40  surface treatment. Suitable for machining steel and stainless

              IC830          steel at low to medium cutting speeds and moderate to high
                             feeds. The grade features high toughness and recommended for   TiN
                     S20-S30  interrupted cuts and machining under unstable conditions. May   TiAlN
                             be used on high temperature alloys at low cutting speeds.
                                                                          Base
                     P15-P30
                    M20-M30  A tough submicron grain size substrate with PVD coating,
                     K20-K40  recommended for general use in a large variety of operations and
              IC908          materials such as steels, alloy steels, austenitic stainless steel and
                             high temperature alloys at moderate cutting speeds.
                     S15-S30  Features high wear resistance and chipping durability.  TiAlN
                     H20-H30                                              Base
          * For coated grades
